Liftgate Lock Release Handle (Liftgate Open Switch) Check
WARNING: This page is about a different variant/trim than selected.

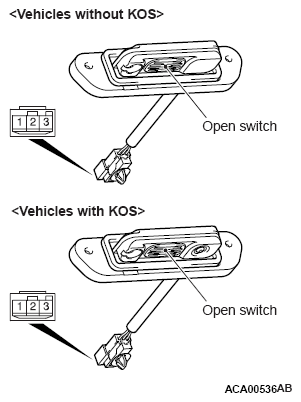

LIFTGATE LOCK RELEASE HANDLE (LIFTGATE OPEN SWITCH) TERMINAL CONTINUITY - VEHICLES WITHOUT KOS
| Switch position | Terminal number | Normal value |
|---|---|---|
| Push (open) | 1 - 2 | Continuity exists (2 Ω or less) |
| Release | 1 - 2 | No continuity |
LIFTGATE LOCK RELEASE HANDLE (LIFTGATE OPEN SWITCH) TERMINAL CONTINUITY - VEHICLES WITH KOS
| Switch position | Terminal number | Normal value |
|---|---|---|
| Push (open) | 1 - 2 | Continuity exists (2 Ω or less) |
| Release | 1 - 2 | No continuity |
