Removal And Installation

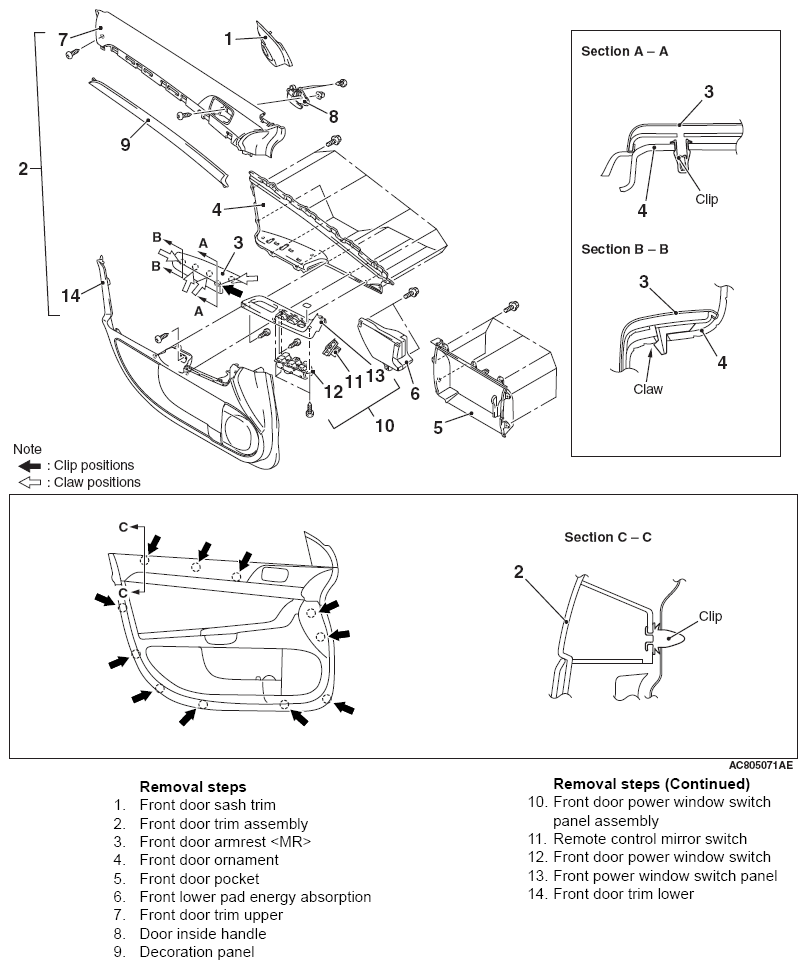

Fig 1: Removal & Installation Of Front Door Trim

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990784: Ornament Remover

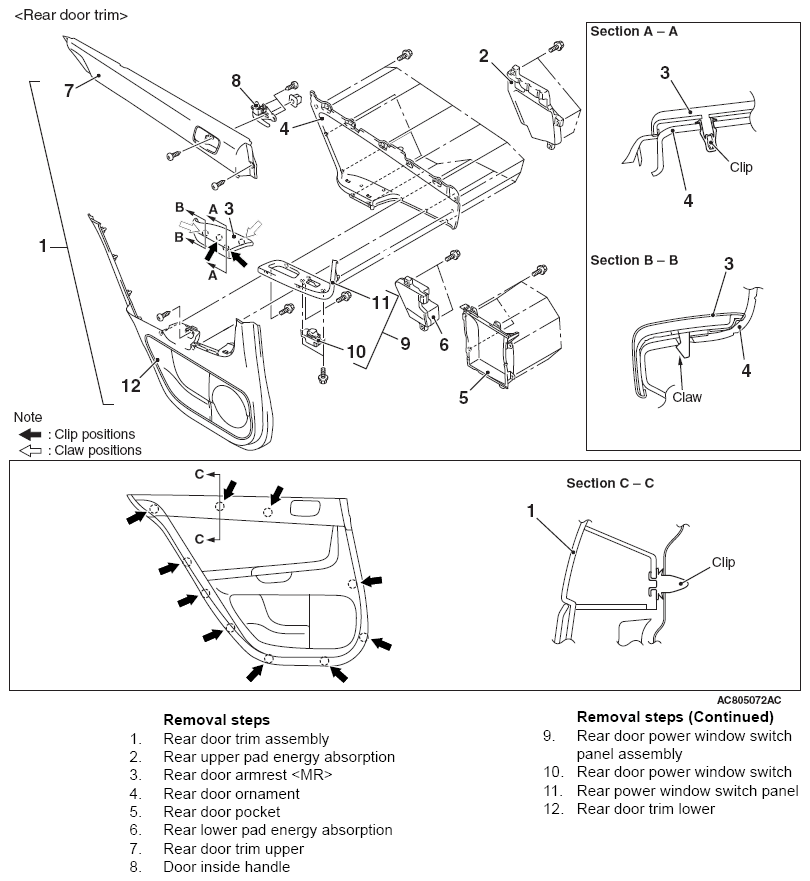

Fig 2: Removal & Installation Of Rear Door Trim

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990784: Ornament Remover
