Disassembly And Assembly: Notes

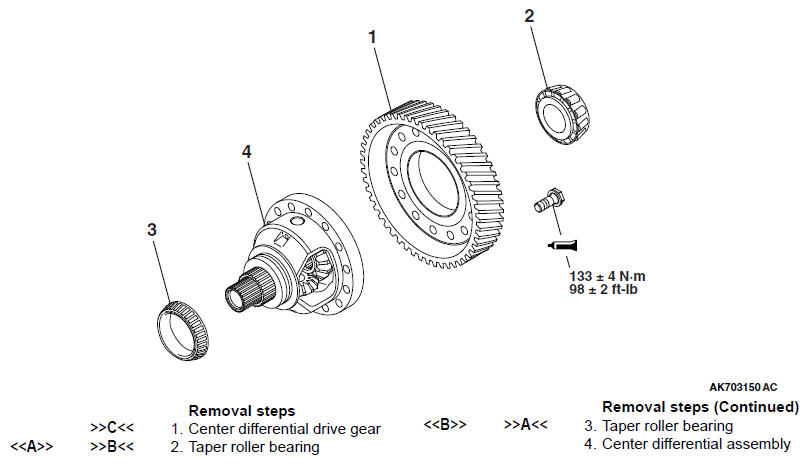

Fig 1: Center Differential Components With Torque Specifications

G06677056

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

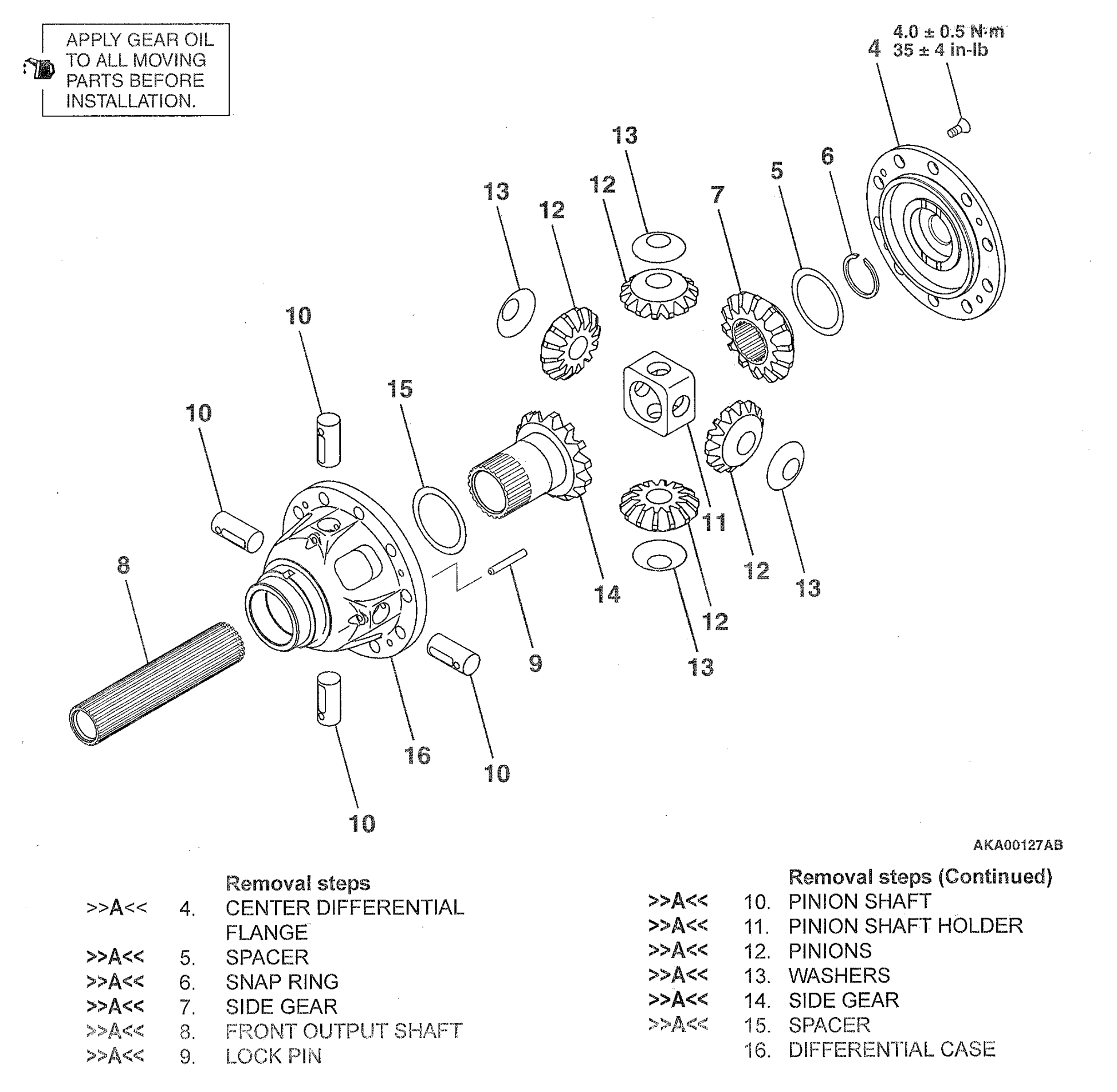

Fig 2: Exploded View Of Center Differential With Torque Specifications

G00505363

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MD998917: Bearing remover
MD999547: Oil seal installer
MD998812: Installer cap
MD998813: Installer-100
MD998830: Installer adapter (66)
MD992272: Bearing installer
MB990847: Rear suspension bushing remover and installer base
