Disassembly And Assembly: Notes

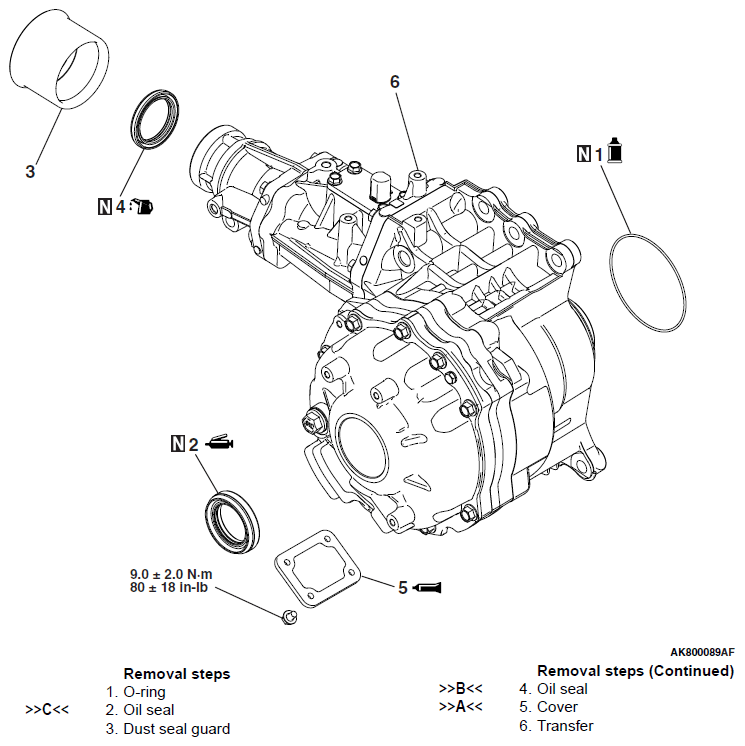

Fig 1: Transfer Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:

• MD998382: Crankshaft front oil seal installer
• MD998550: Extension housing seal installer
