Amplifier - Lancer Evolution
›
Removal And Installation
›
Notes
Removal And Installation: Notes
CAUTION:
To remove the front seat assembly of vehicle with side air bag, refer to
SERVICE PRECAUTIONS
and
CURTAIN AIR BAG MODULES

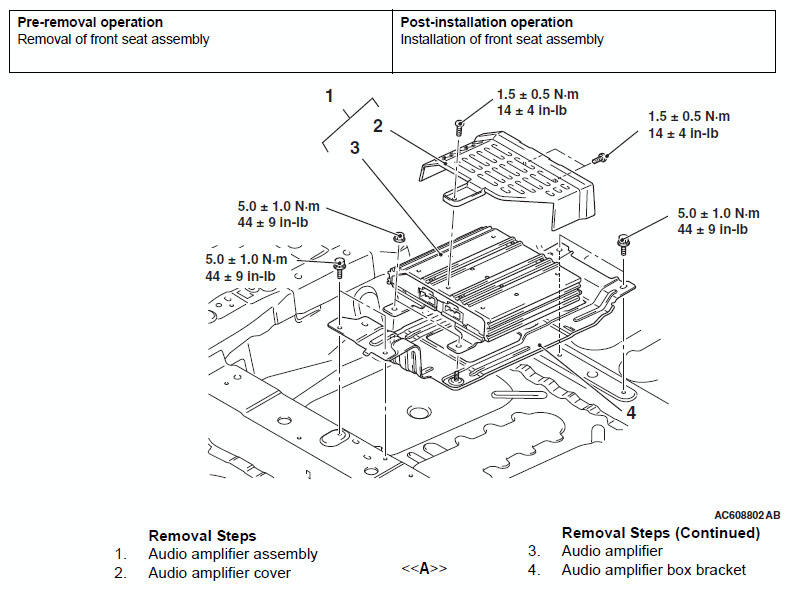

Fig 1: Audio Amplifier Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
