Rear Window Defogger Does Not Operate: Notes

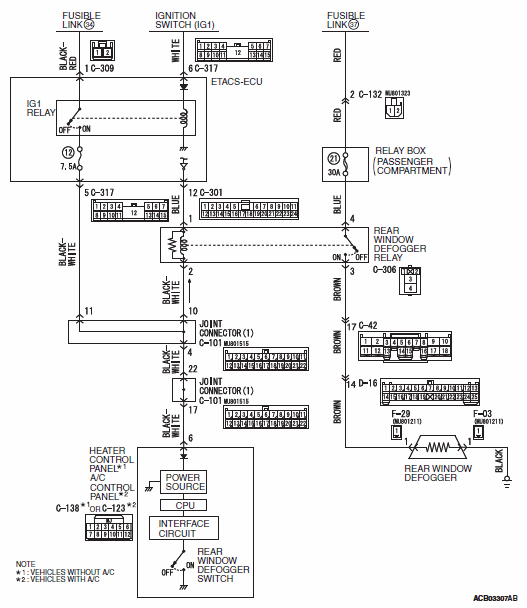

Fig 1: Rear Window Defogger Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

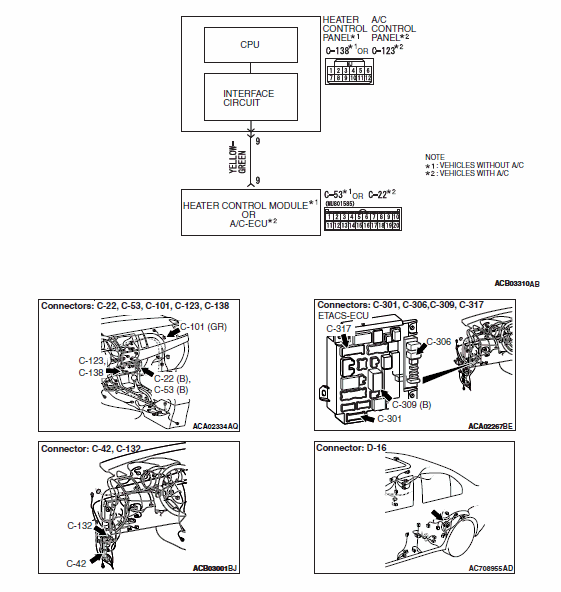

Fig 2: A/C Control Panel Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Locating Connectors F-03 & F-29

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
