Disassembly And Reassembly: Notes

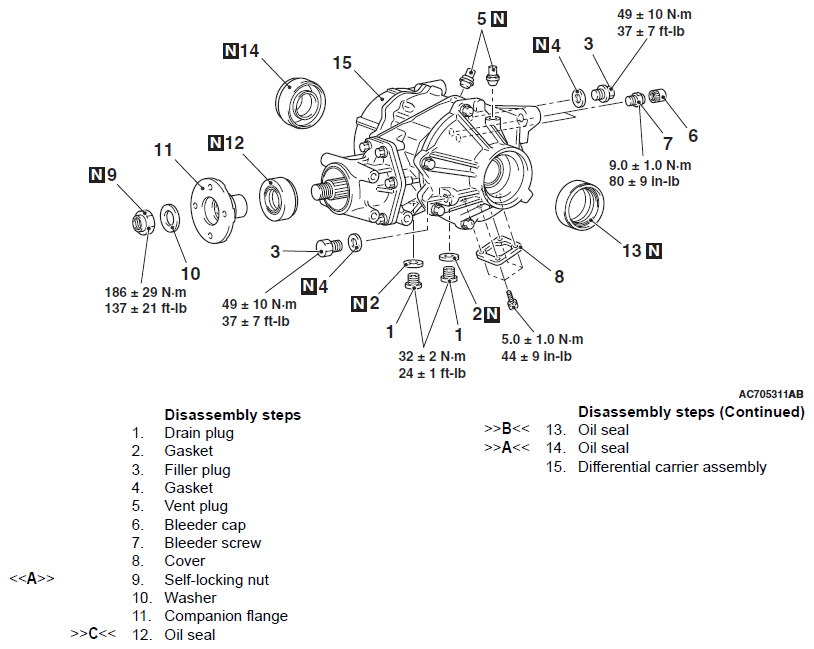

Fig 1: Exploded View Of Differential With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990727: Oil Seal Installer
• MB990850: End Yoke Holder
• MB990938: Installer Bar
• MB991245: Lower Arm Bush Ring
• MB991551: Bearing Outer Race Installer
