OEM Splice Locations - Lancer Evolution
›
Engine And Transaxle
Engine And Transaxle

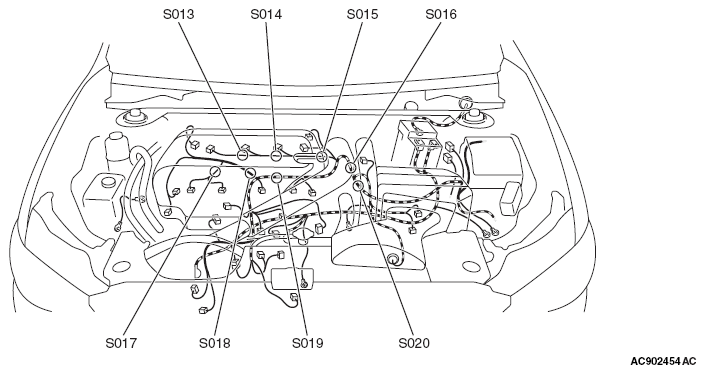

Fig 1: Identifying Splice Locations - Engine & Transaxle
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
