OEM Component Locations - Lancer Evolution: Grounding

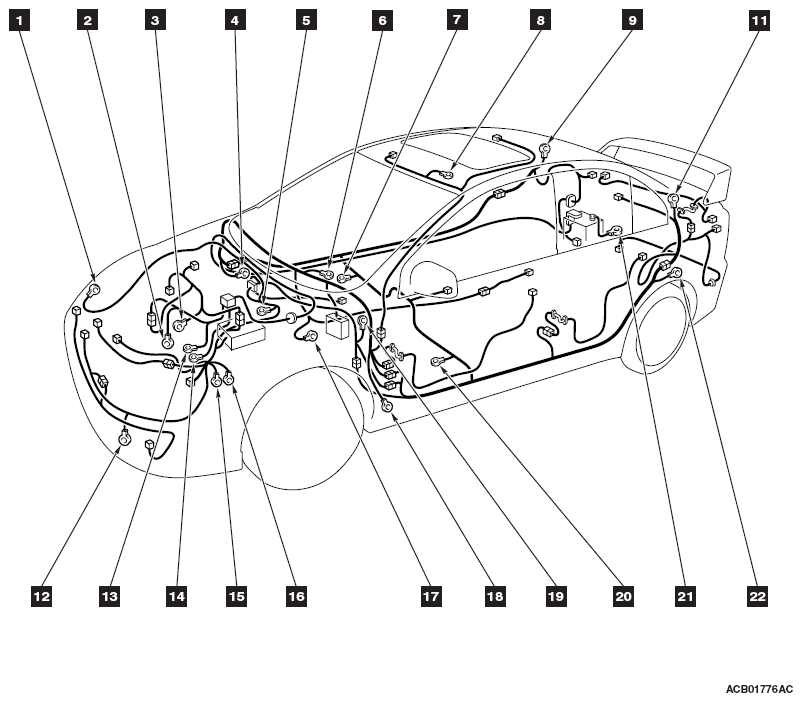

Fig 1: Identifying Grounding Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: 1 to 22 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

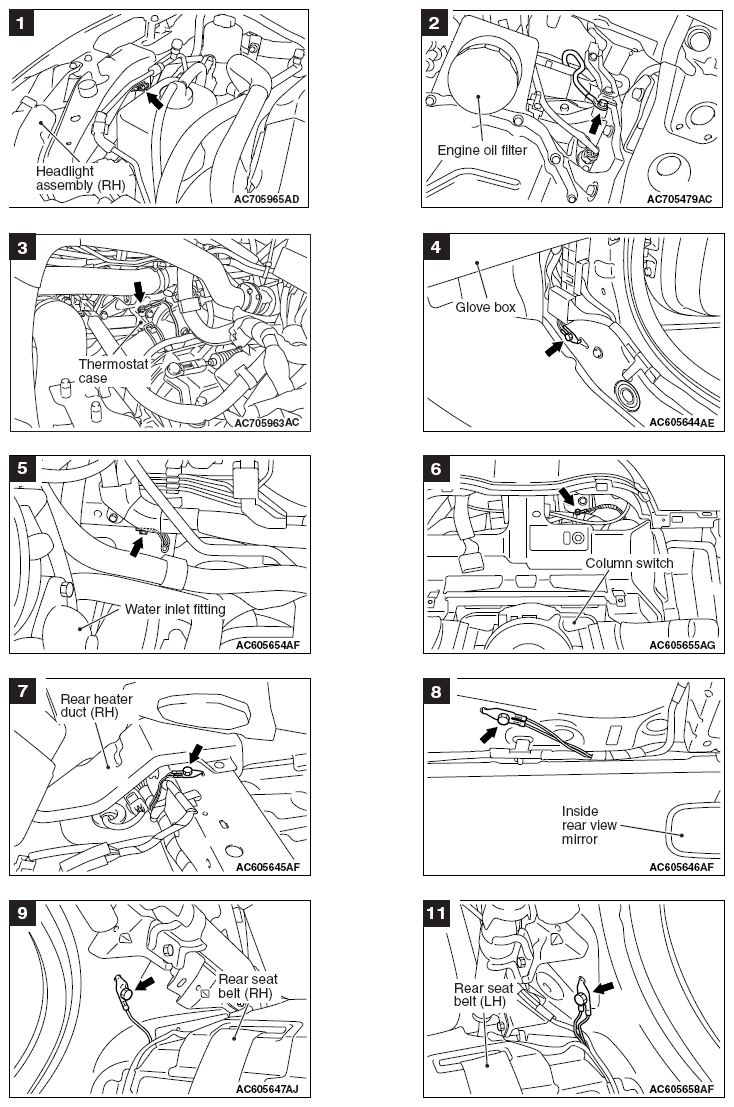

Fig 2: Locating Grounding (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

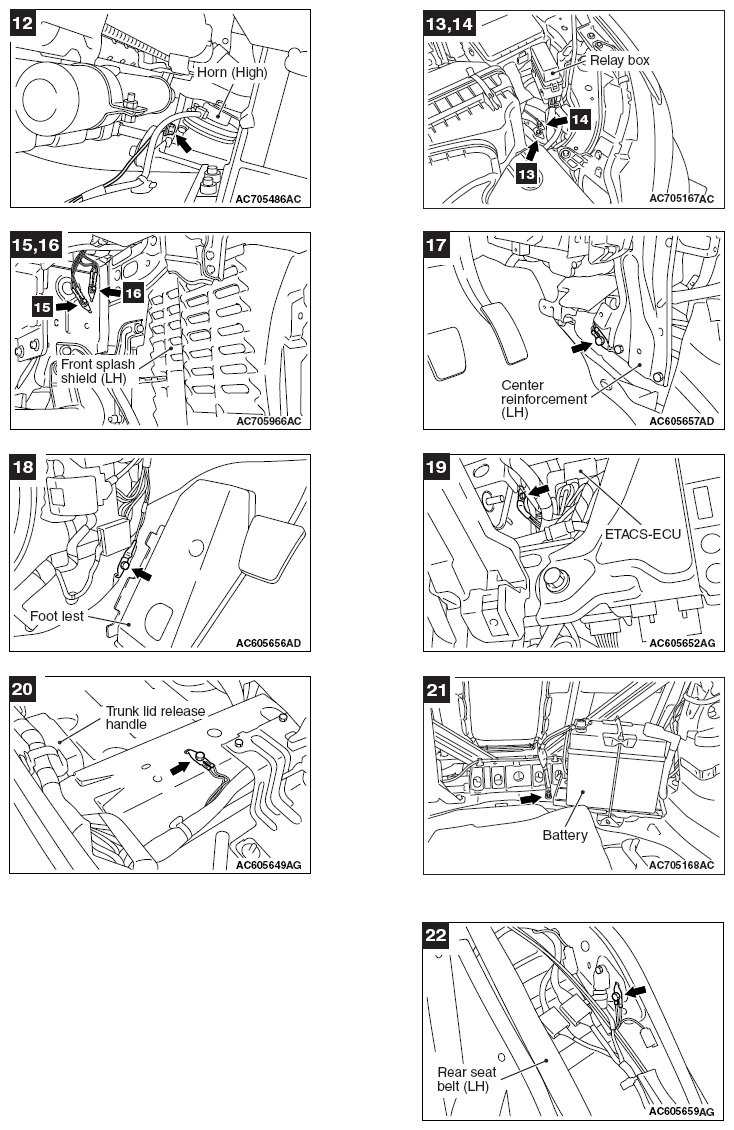

Fig 3: Locating Grounding (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
