Removal And Installation: Notes

CAUTION:

Degrease the air hose and air pipe by isopropyl alcohol, parts cleaner (MZ100387) or equivalent.
As for the parts cleaner, use the petroleum cleaner whose major component is aliphatic hydrocarbon.
Working area should be airy and kept from flame.

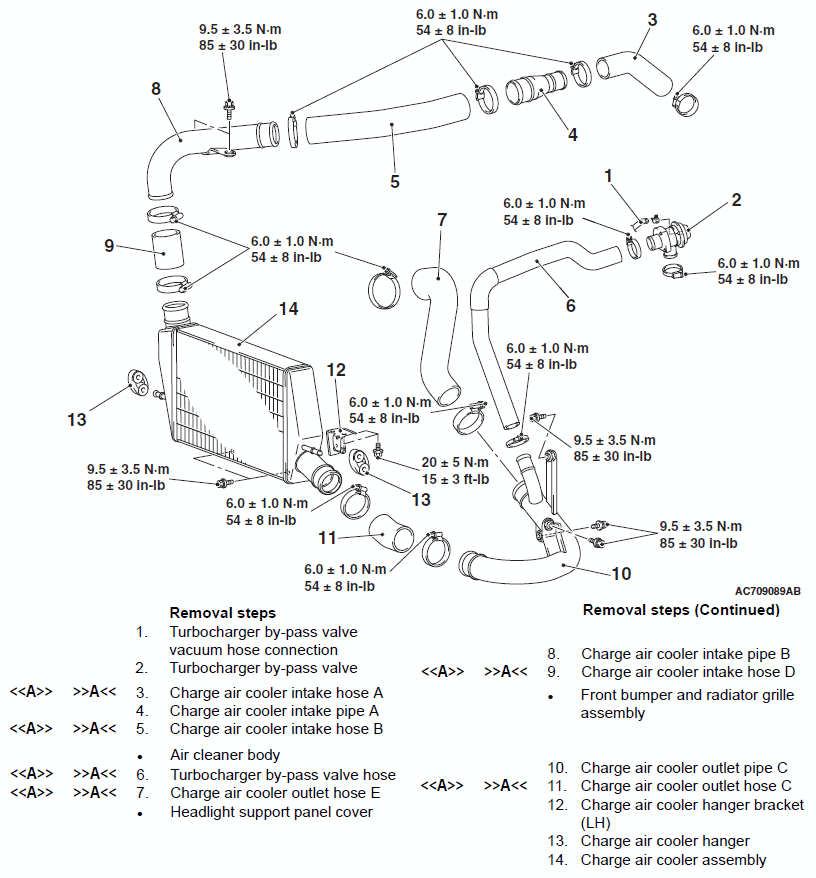

Fig 1: Removing/Installing Charge Air Cooler Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
