Removal And Installation: Notes

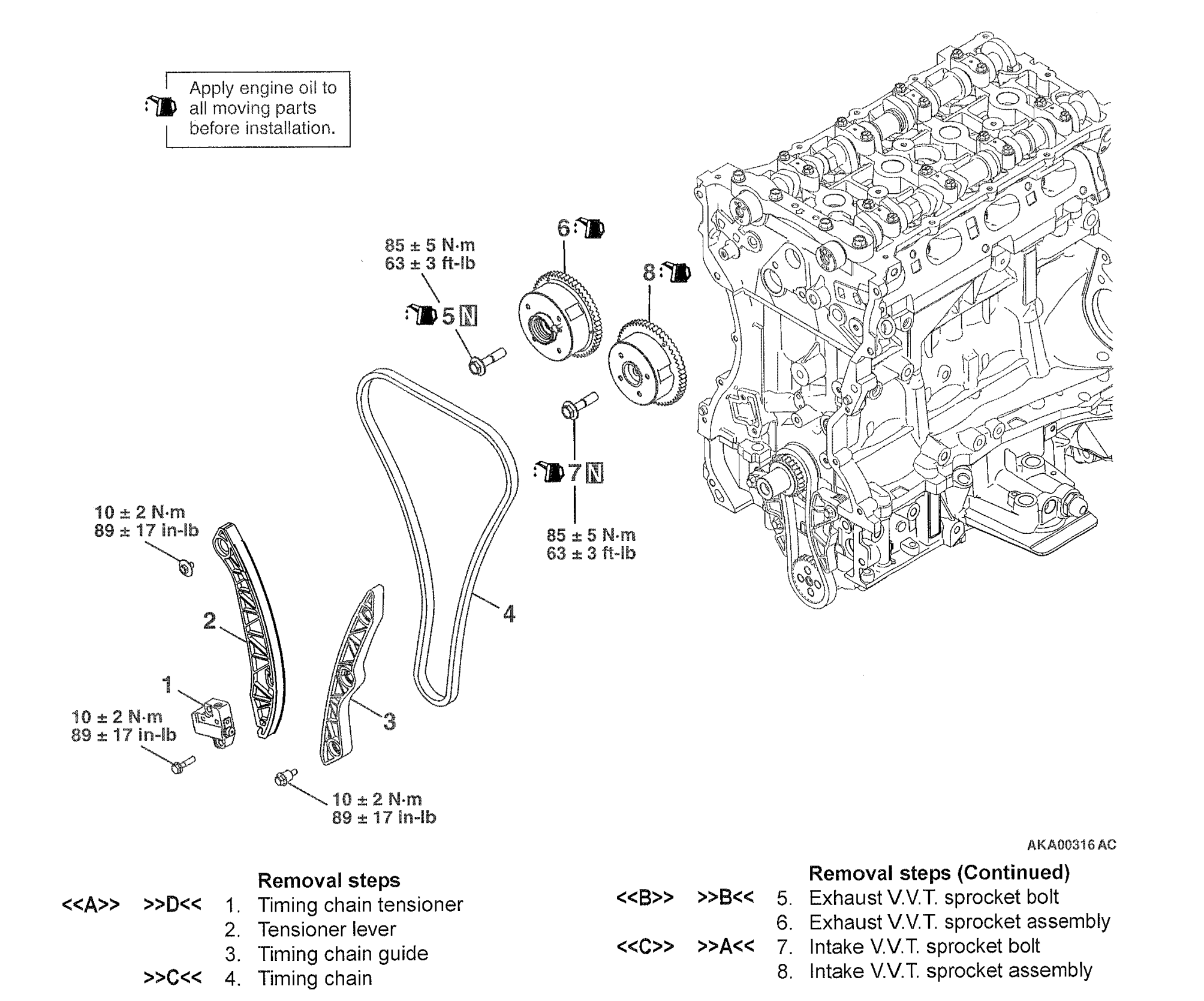

Fig 1: Removal/Installation Of Timing Chain Components With Torque Specifications
G00505432Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
