Fuel Supply System - Lancer Evolution
›
Fuel Tank
›
Disassembly And Assembly
›
Fuel Tank Assembly
Fuel Tank Assembly

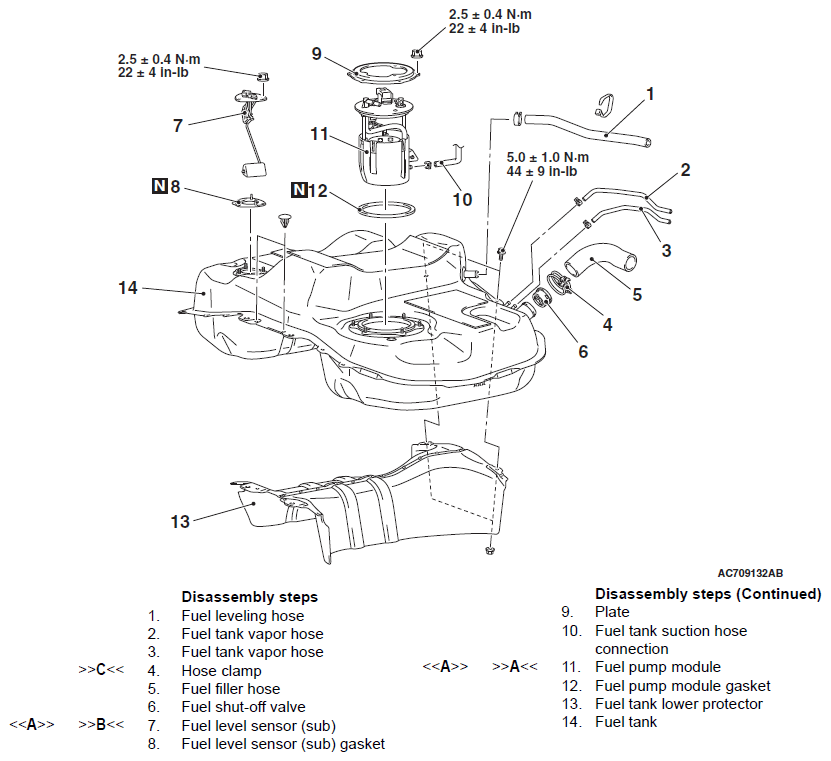

Fig 1: Exploded View Fuel Tank Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
