Fuel Supply System - Lancer Evolution
›
Fuel Tank
›
Disassembly And Reassembly
›
Fuel Pump Module
Fuel Pump Module
NOTE:
For installation and removal, refer to
FUEL PUMP MODULE REPLACEMENT IN ON-VEHICLE SERVICE
.

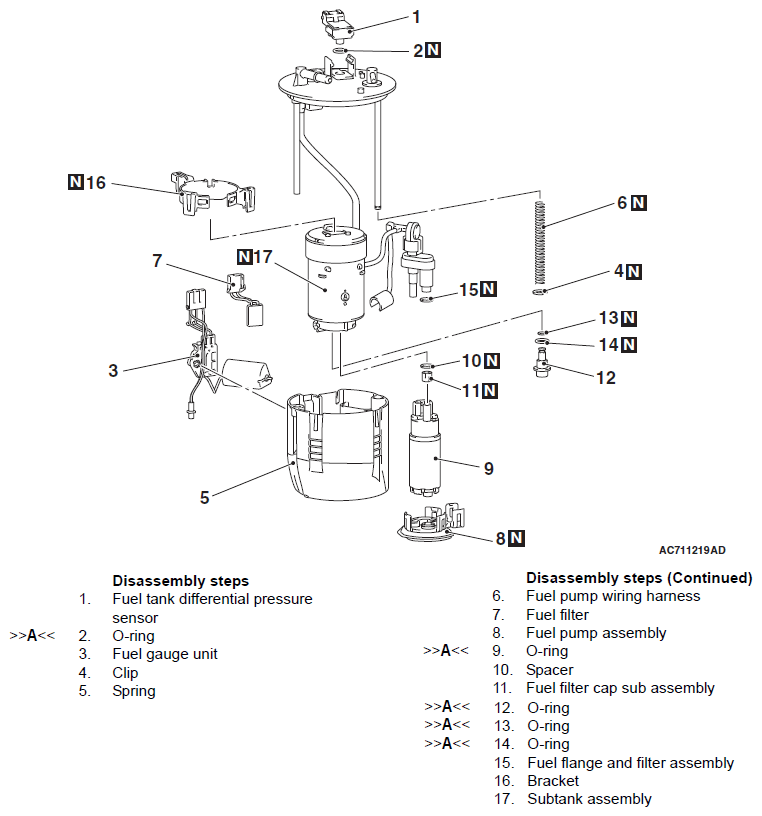

Fig 1: Exploded View Of Fuel Pump Module
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
