Lubrication Points

WARNING: This page is about a different variant/trim than selected.

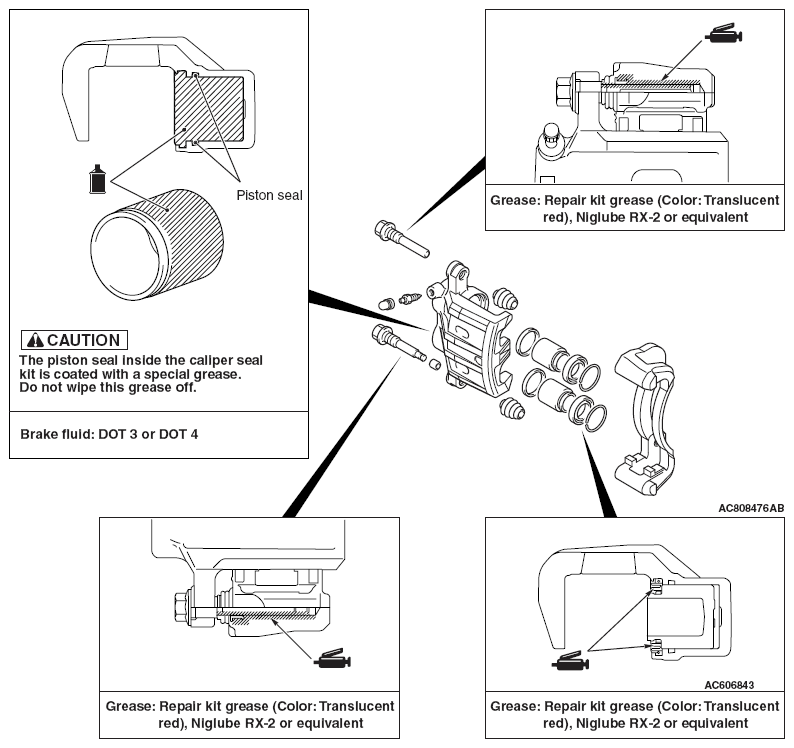

Fig 1: Identifying Grease Applying Areas On Front Disc Brake Assembly (16-Inch, Ralliart)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
