Inspection Procedure 2: The Keyless Operation Key Cannot Be Registered Using Scan Tool: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: When replacing the ECU, always check that the communication circuit is normal.

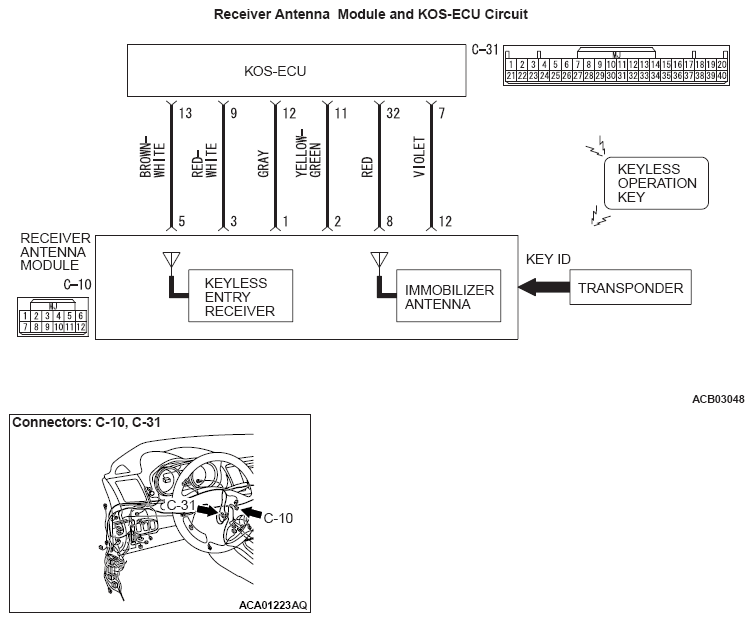

Fig 1: Receiver Antenna Module And KOS-ECU Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
