Section 28 (Keyless Operation System (Kos) - Lancer)
›
General Information
›
Control Of Unlocking Operation
Control Of Unlocking Operation
WARNING:
This page is about a different variant/trim than selected.

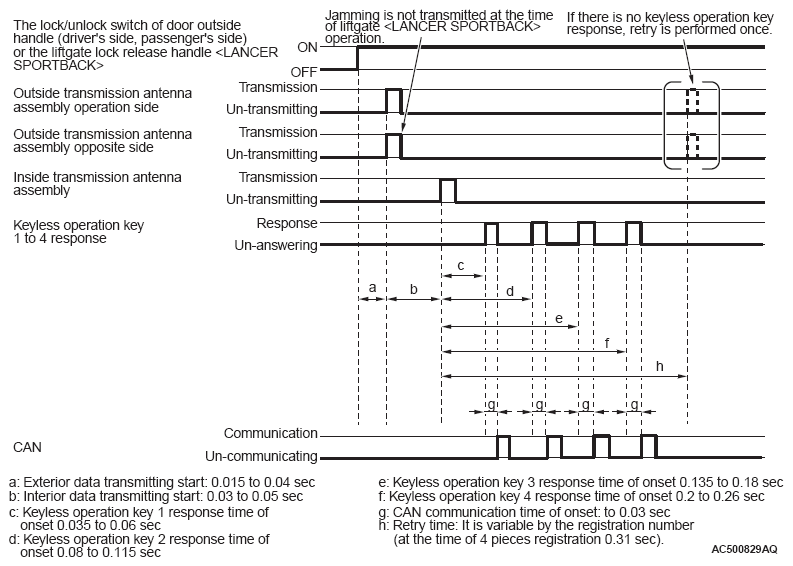

Fig 1: Unlocking Operation Control Pattern
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
