Section 28 (Keyless Operation System (Kos) - Lancer)
›
General Information
›
System Configuration
›
Lancer SPORTBACK
Lancer SPORTBACK
WARNING:
This page is about a different variant/trim than selected.

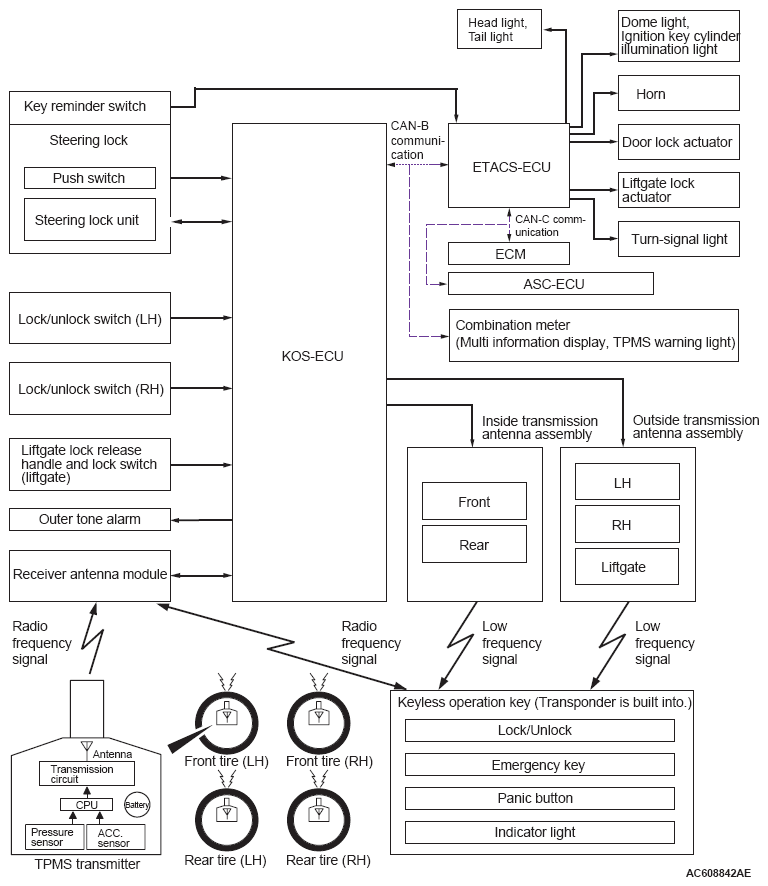

Fig 1: Keyless Operation System Diagram (Lancer Sportback)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
