System Configuration: Lancer

WARNING: This page is about a different variant/trim than selected.

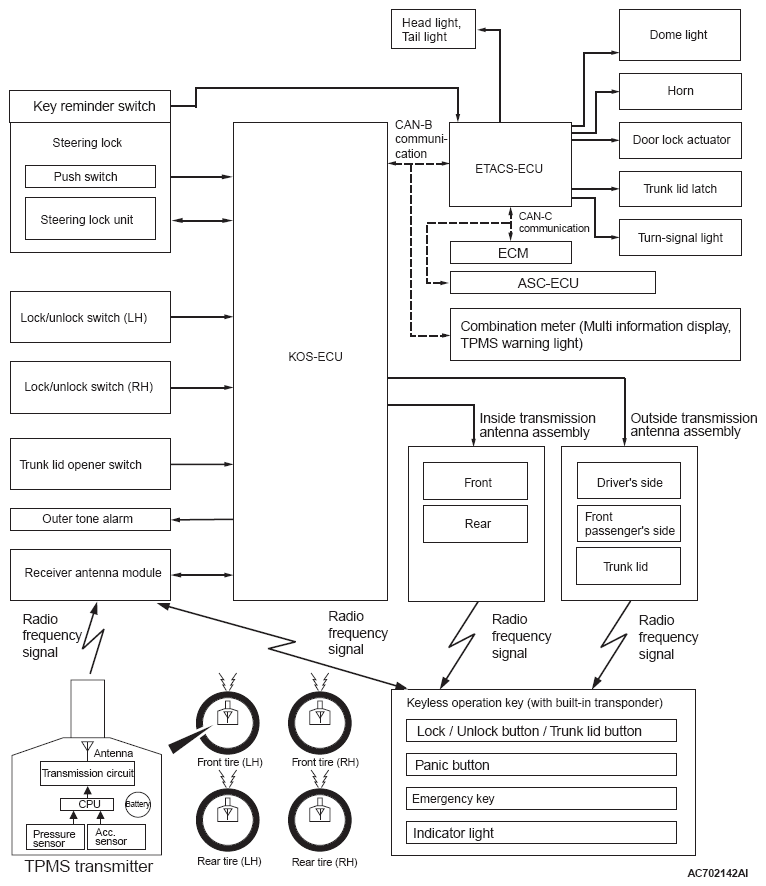

Fig 1: Keyless Operation System Diagram (Lancer)
G07032828Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
