Section 53 (Door System - Lancer)
›
Door Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

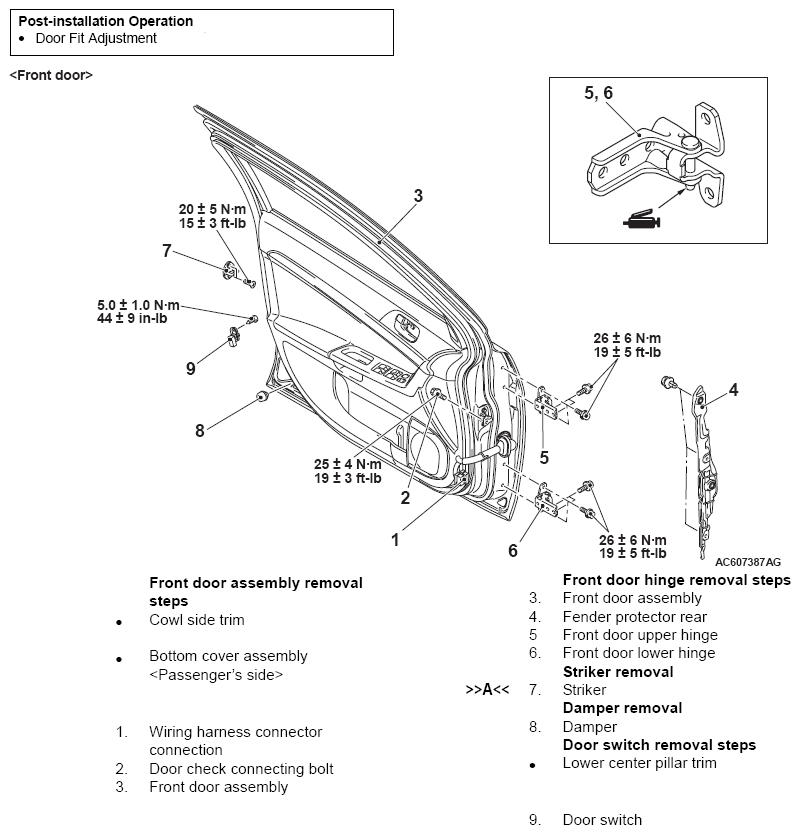

Fig 1: Front Door Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

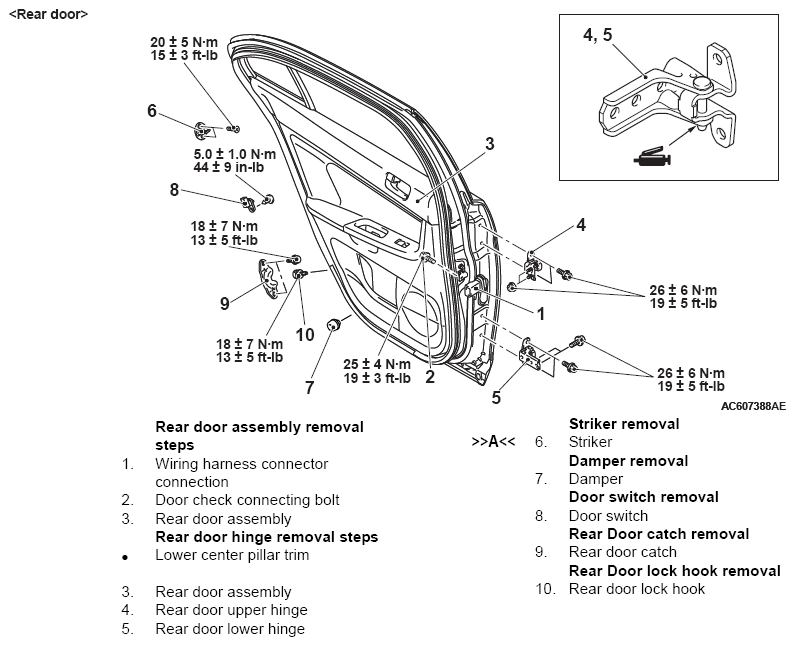

Fig 2: Rear Door Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
