Section 70 (USB Box - Lancer)
›
General Information
›
System Block Diagram
System Block Diagram
WARNING:
This page is about a different variant/trim than selected.

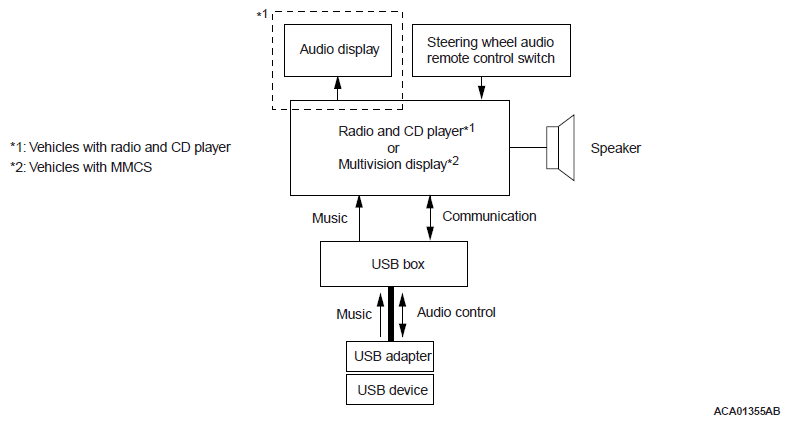

Fig 1: USB Box System Block Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
