Air Conditioning System

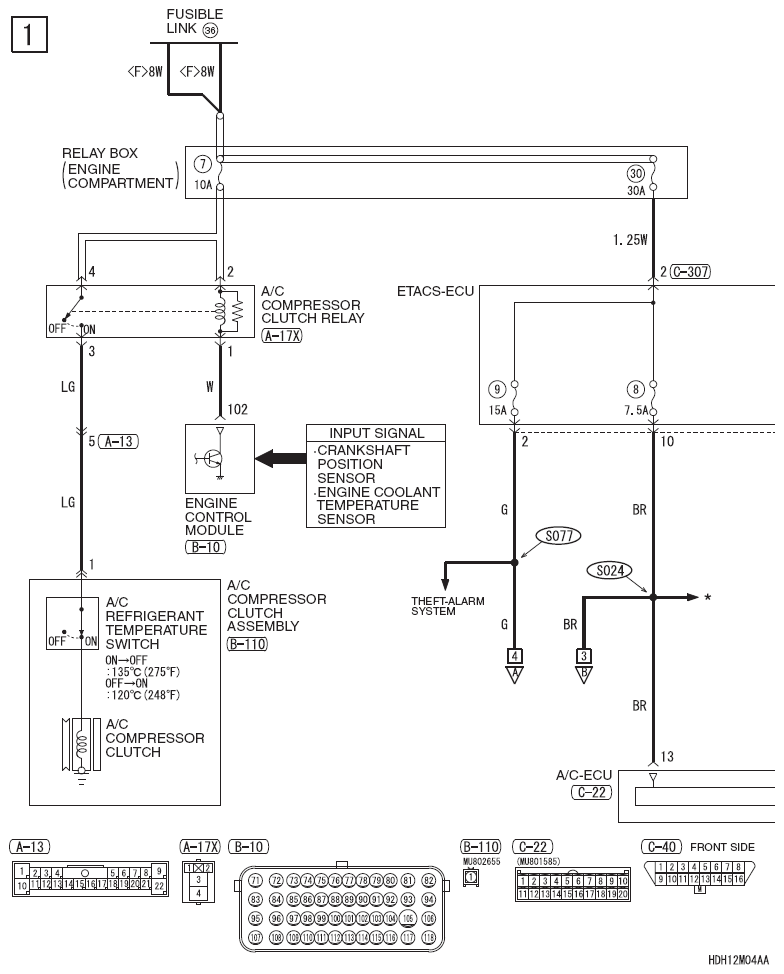

Fig 1: Air Conditioning System Circuit Diagram (1 Of 11)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

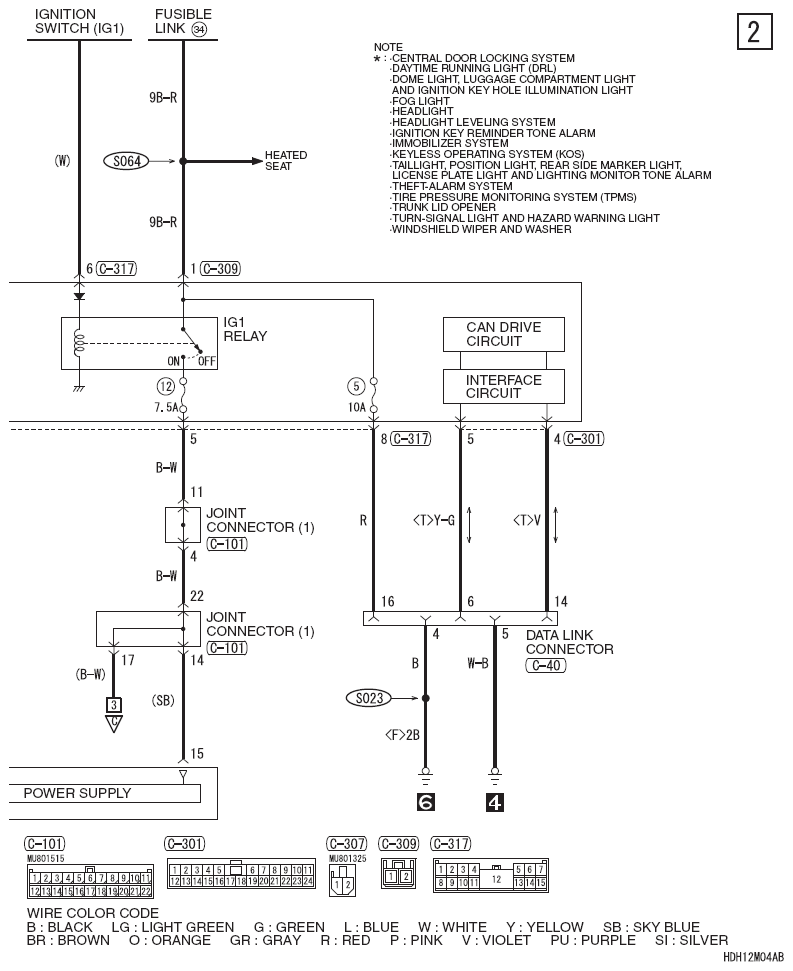

Fig 2: Air Conditioning System Circuit Diagram (2 Of 11)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

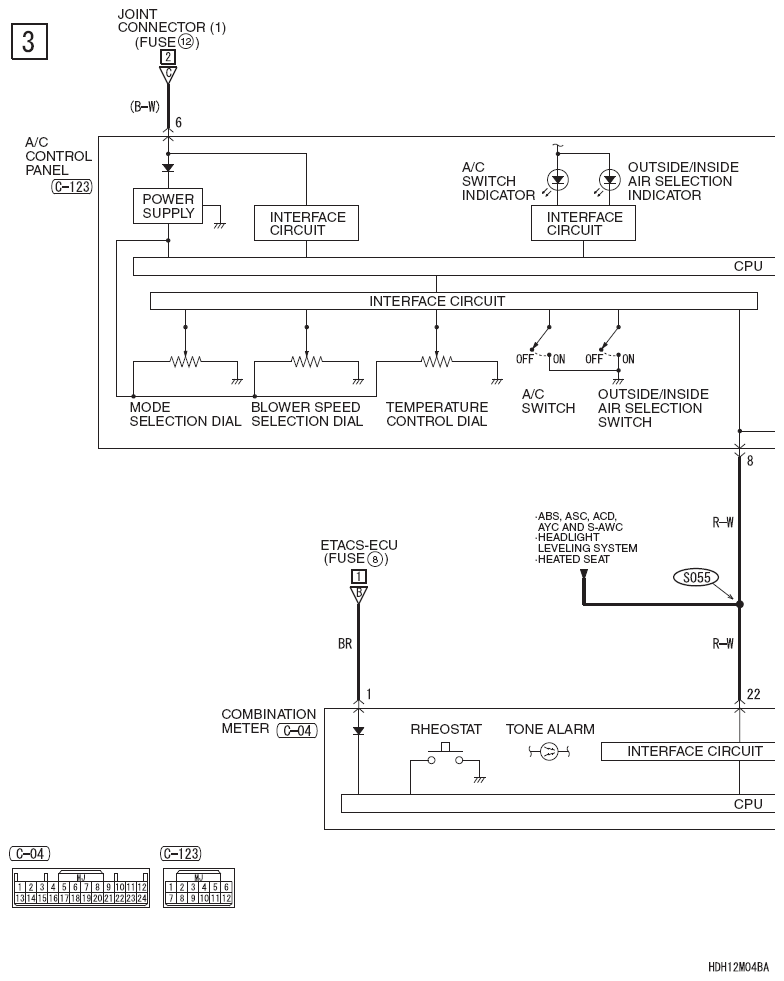

Fig 3: Air Conditioning System Circuit Diagram (3 Of 11)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

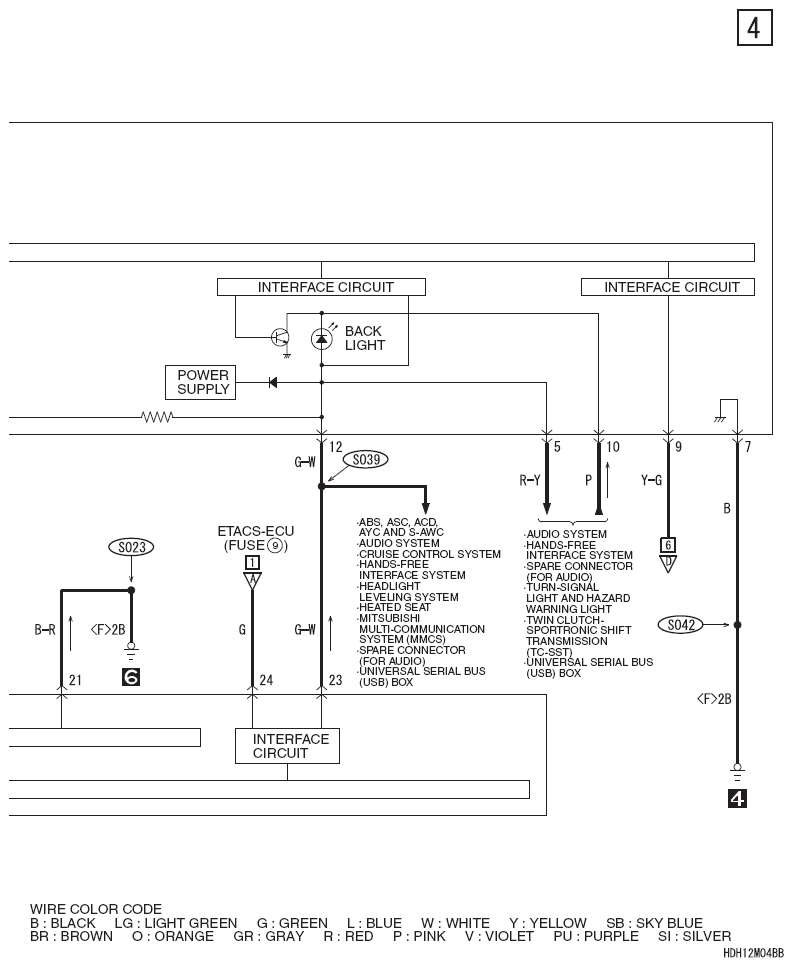

Fig 4: Air Conditioning System Circuit Diagram (4 Of 11)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

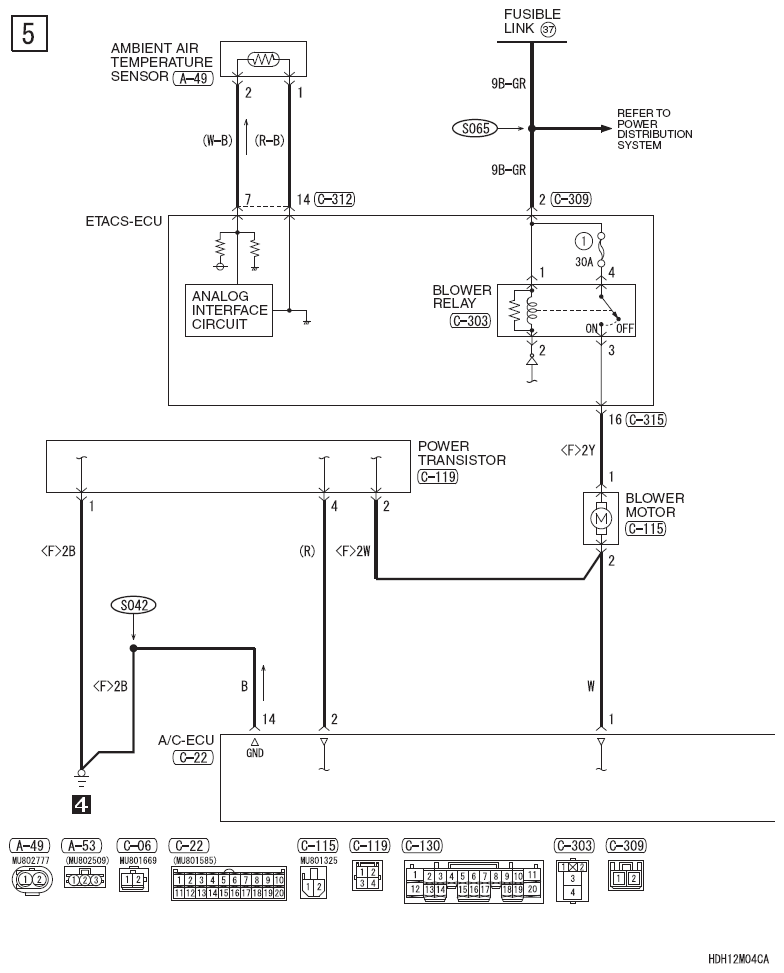

Fig 5: Air Conditioning System Circuit Diagram (5 Of 11)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

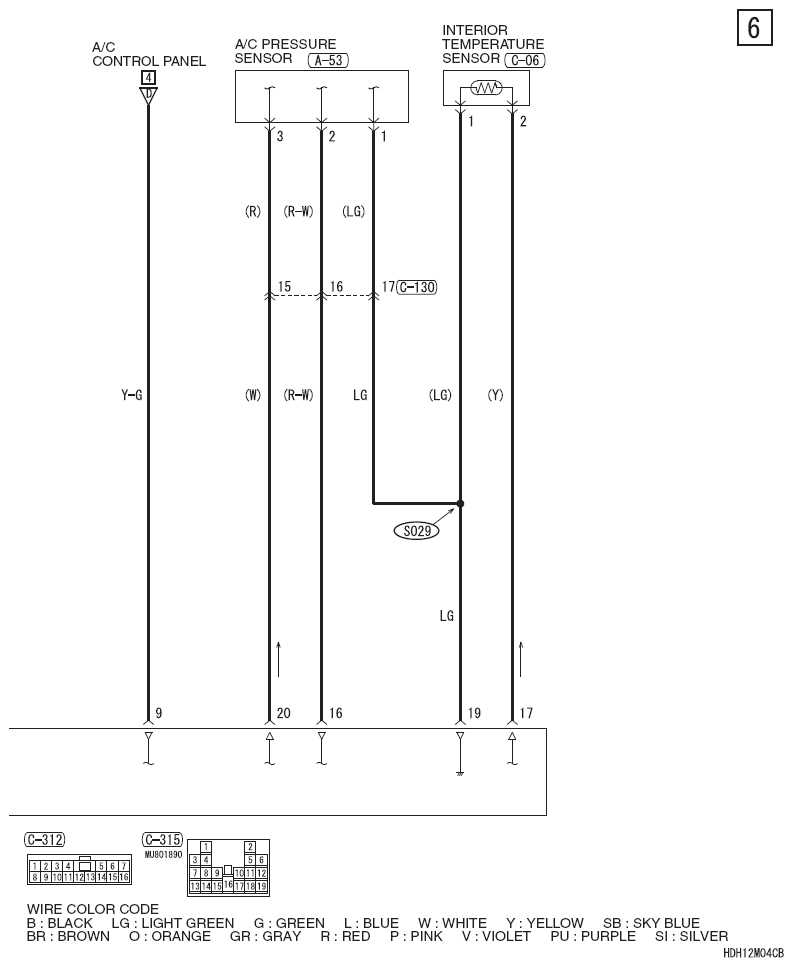

Fig 6: Air Conditioning System Circuit Diagram (6 Of 11)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

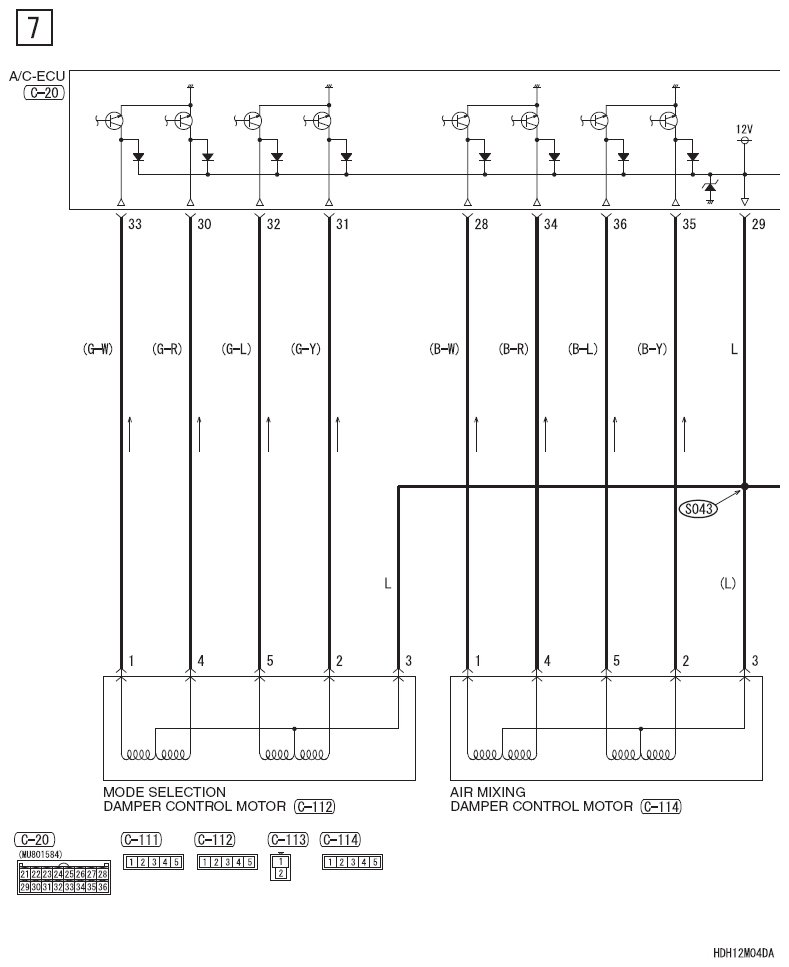

Fig 7: Air Conditioning System Circuit Diagram (7 Of 11)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

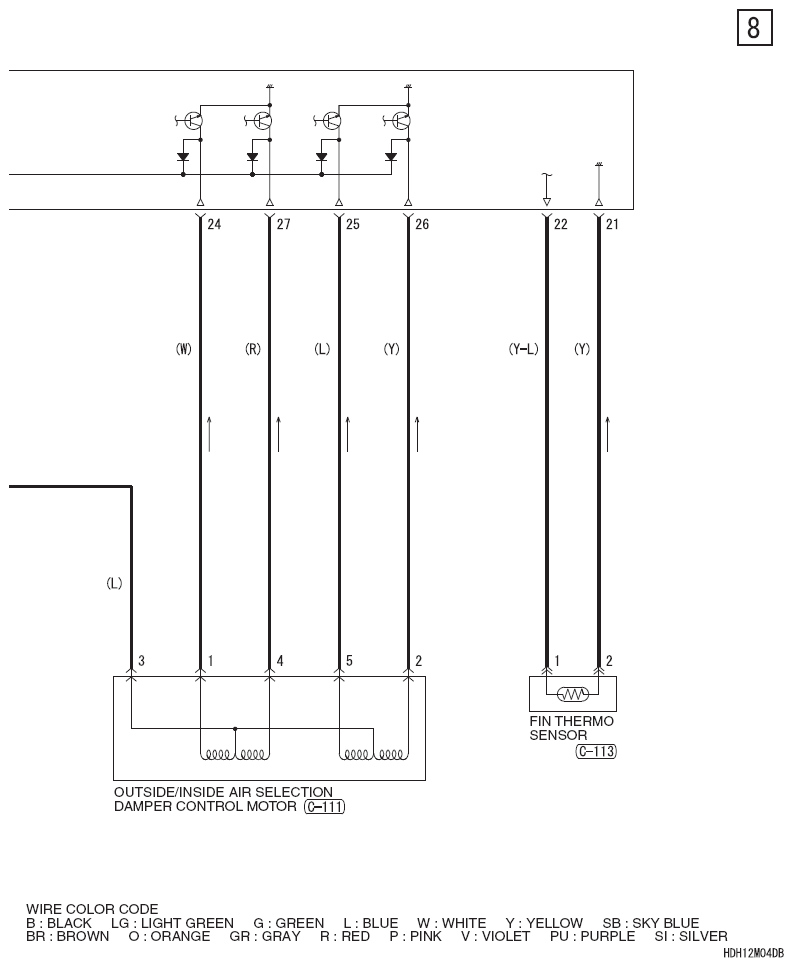

Fig 8: Air Conditioning System Circuit Diagram (8 Of 11)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

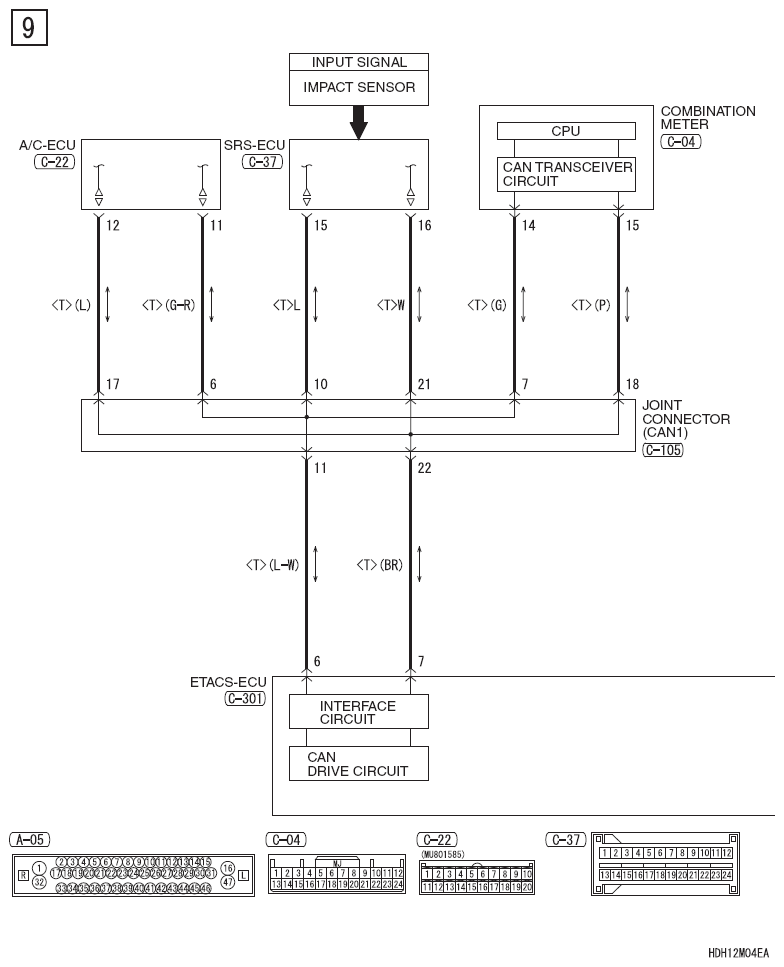

Fig 9: Air Conditioning System Circuit Diagram (9 Of 11)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

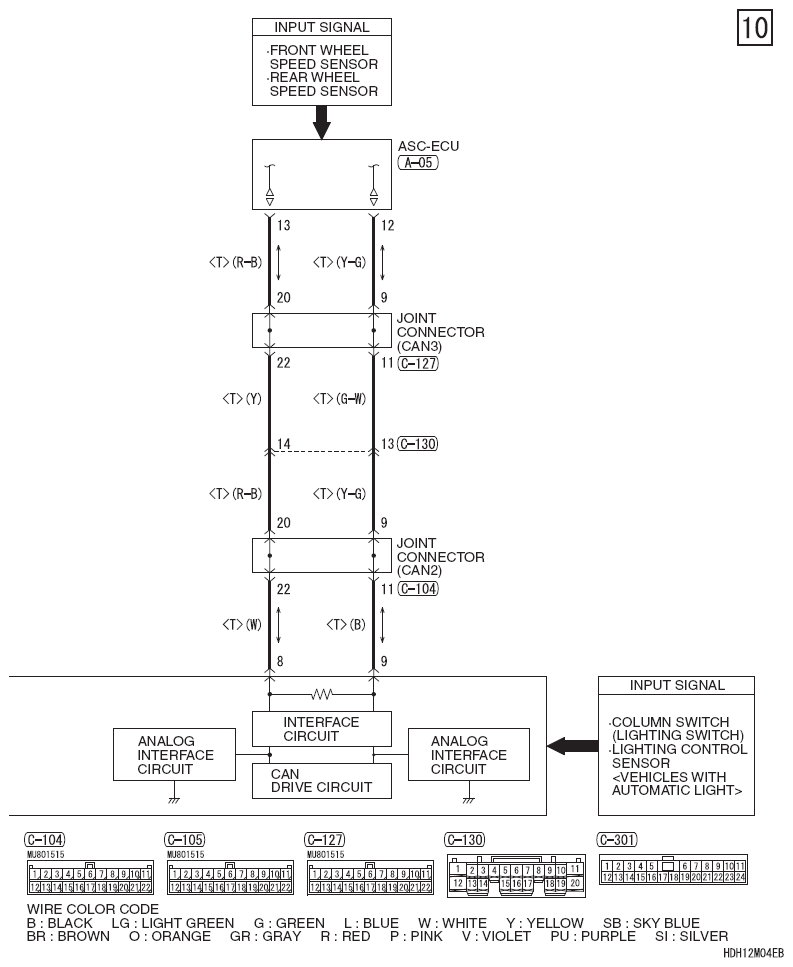

Fig 10: Air Conditioning System Circuit Diagram (10 Of 11)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

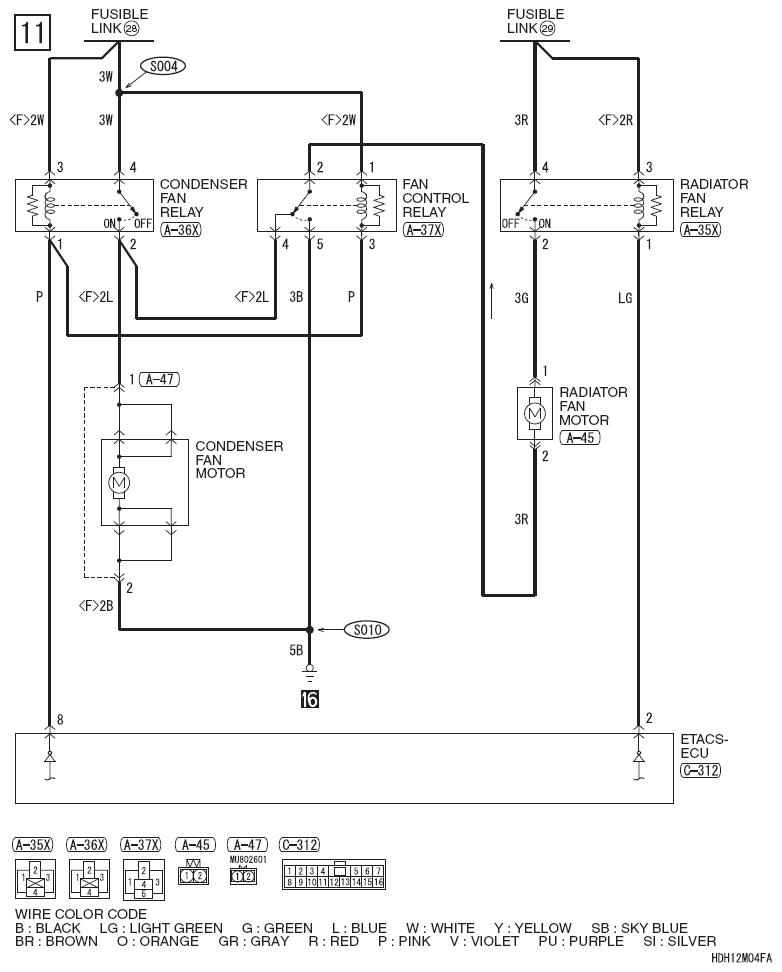

Fig 11: Air Conditioning System Circuit Diagram (11 Of 11)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
