OEM Circuit Diagrams - Lancer Evolution
›
Backup Light
Backup Light

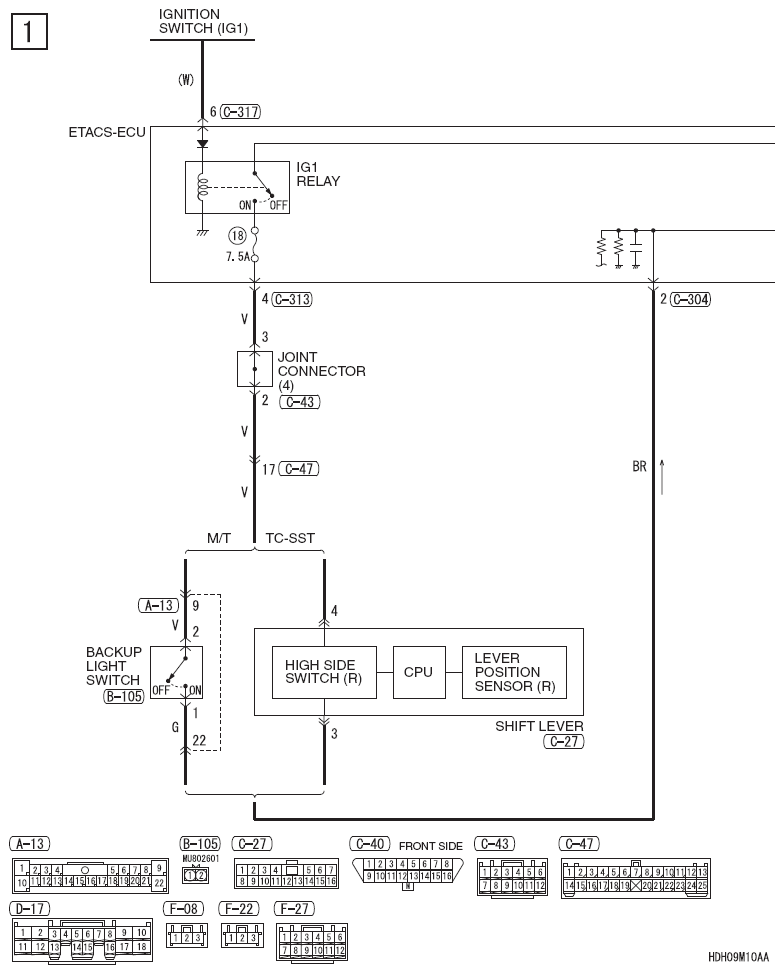

Fig 1: Backup Light Circuit Diagram (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

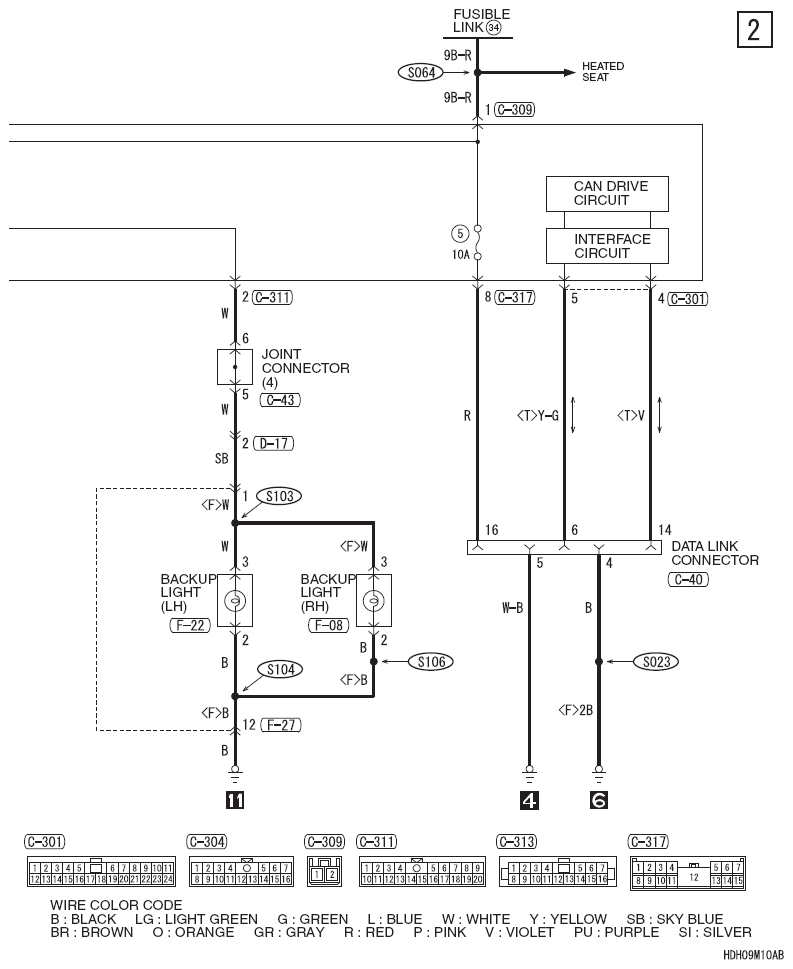

Fig 2: Backup Light Circuit Diagram (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
