Cruise Control System - TC-SST

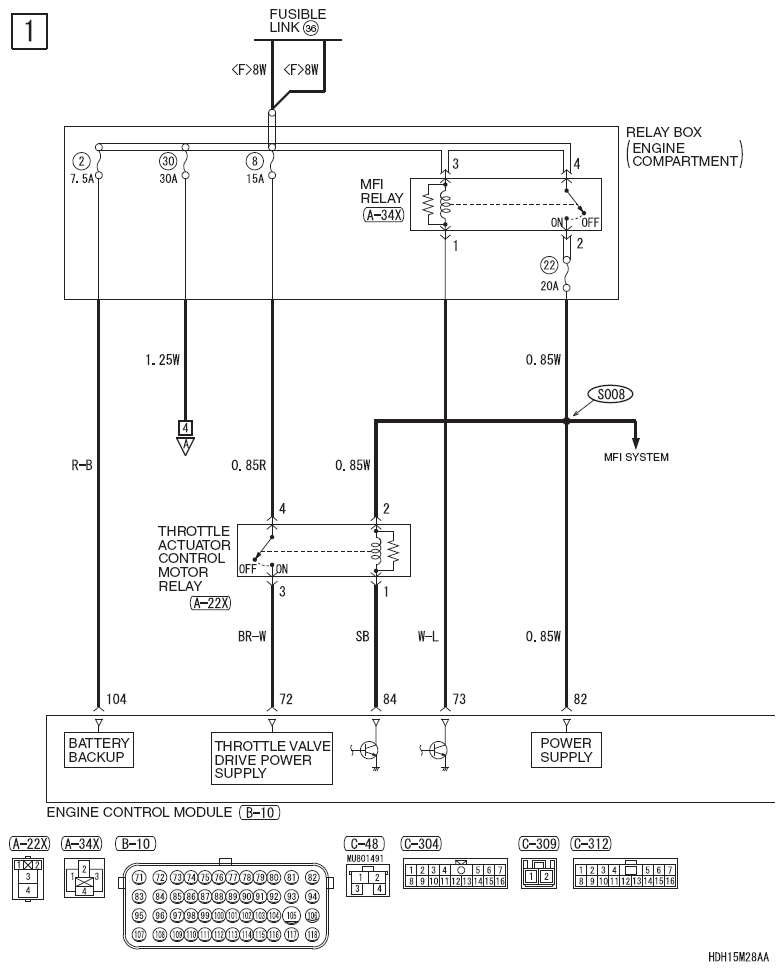

Fig 1: Cruise Control System Circuit Diagram - TC-SST (1 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

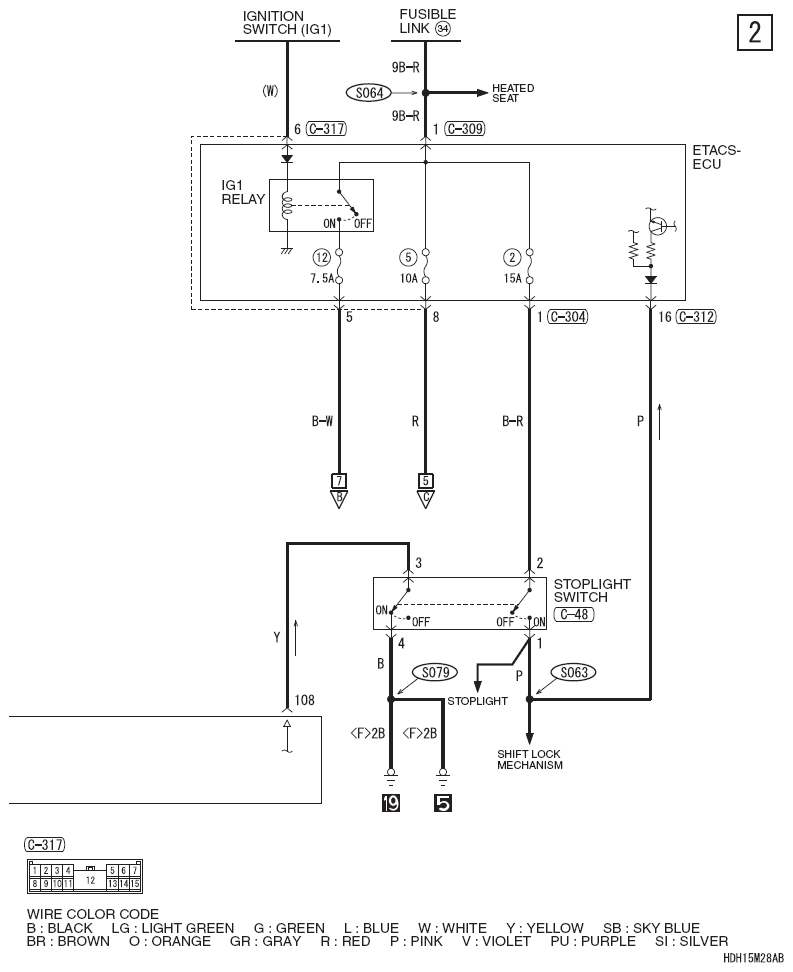

Fig 2: Cruise Control System Circuit Diagram - TC-SST (2 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

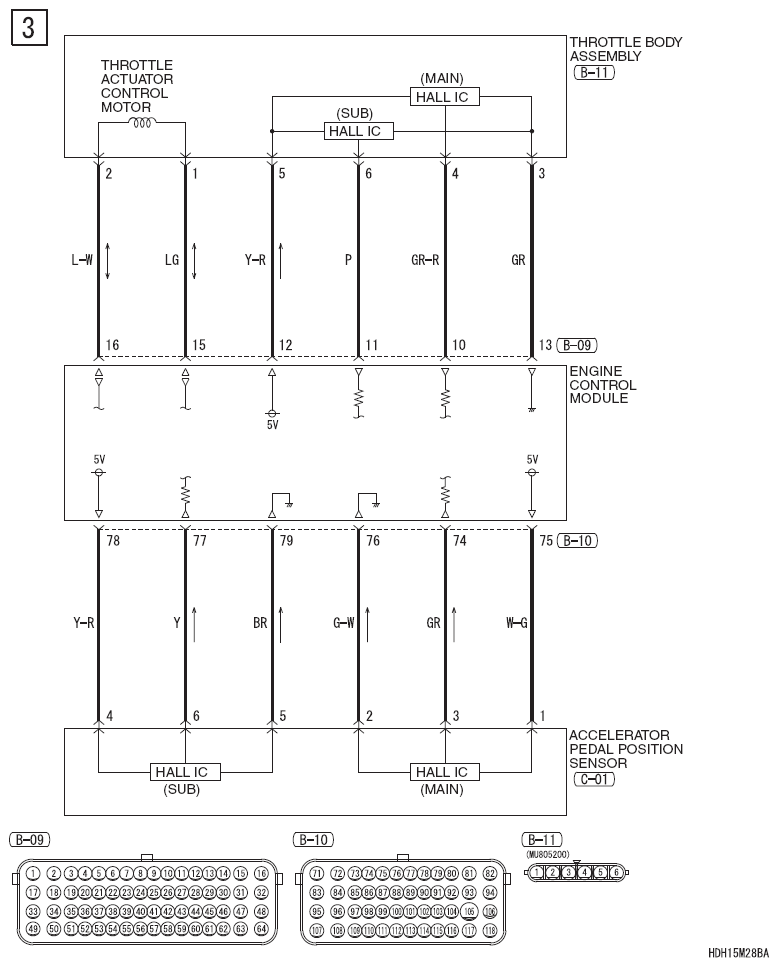

Fig 3: Cruise Control System Circuit Diagram - TC-SST (3 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

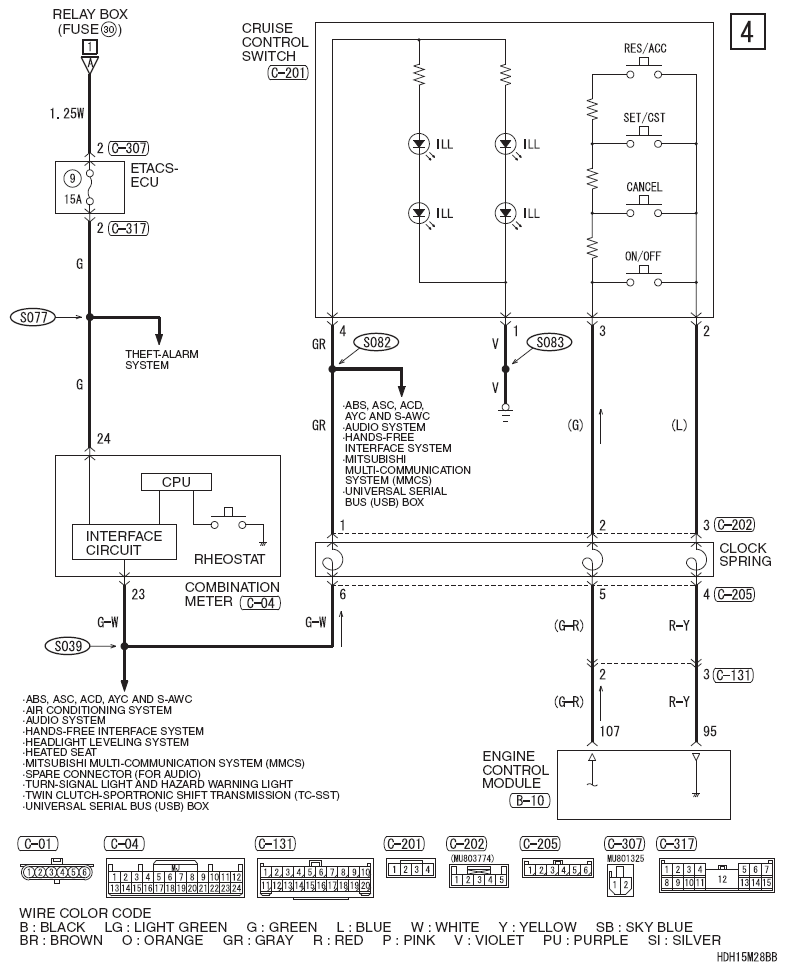

Fig 4: Cruise Control System Circuit Diagram - TC-SST (4 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

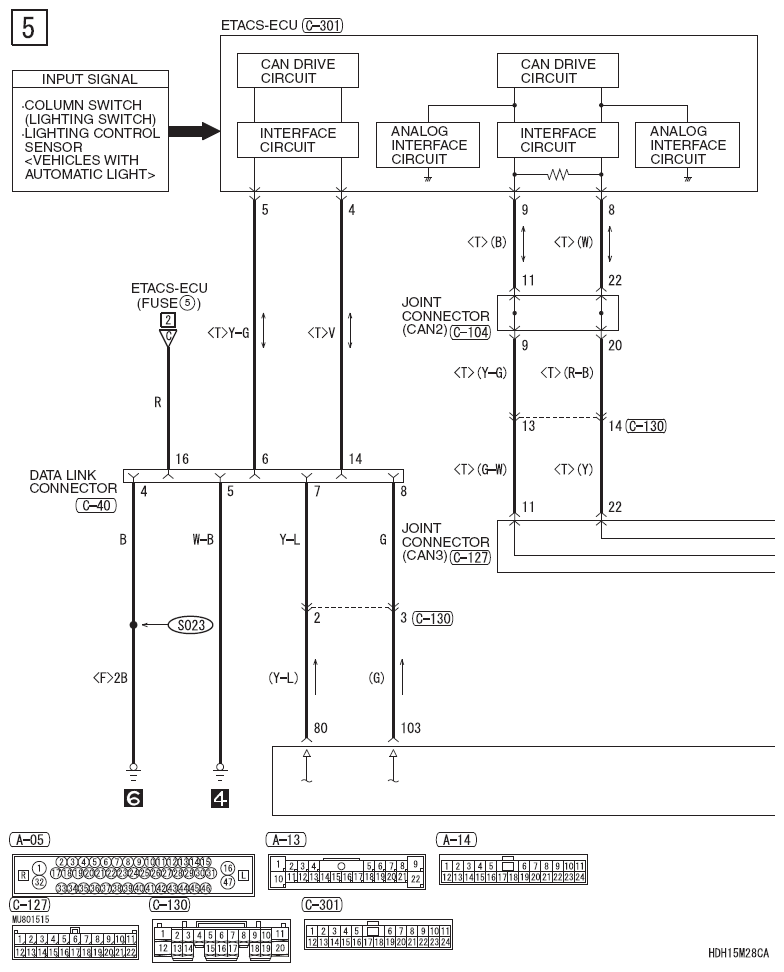

Fig 5: Cruise Control System Circuit Diagram - TC-SST (5 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

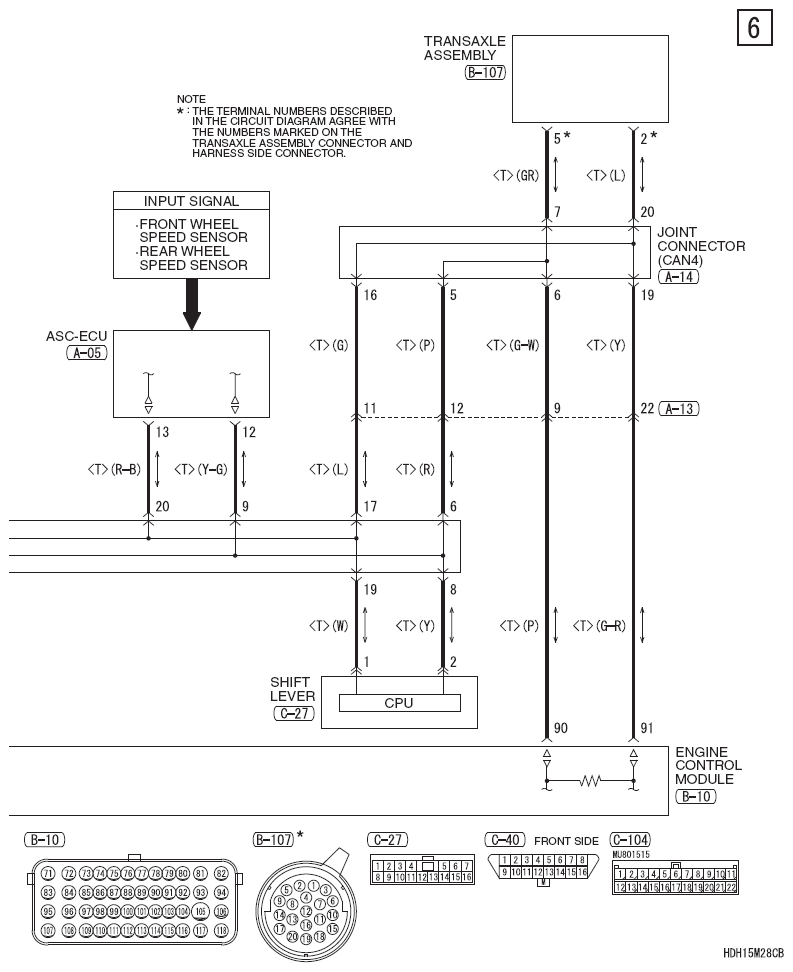

Fig 6: Cruise Control System Circuit Diagram - TC-SST (6 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

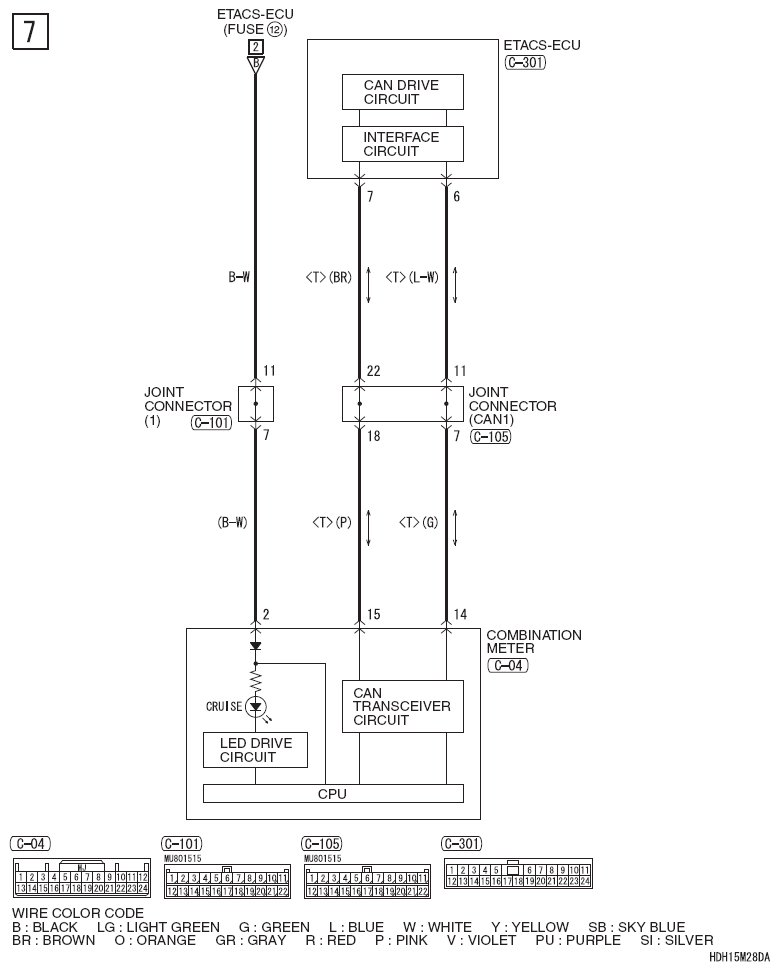

Fig 7: Cruise Control System Circuit Diagram - TC-SST (7 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
