Headlight - Halogen Type

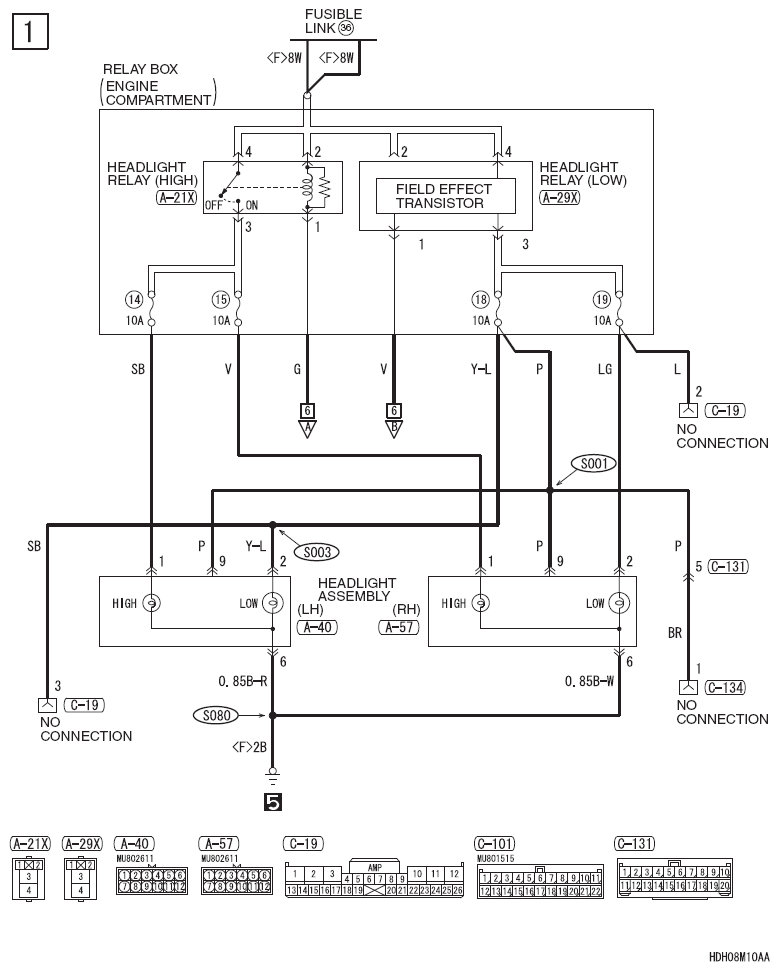

Fig 1: Headlight Circuit Diagram - Halogen Type (1 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

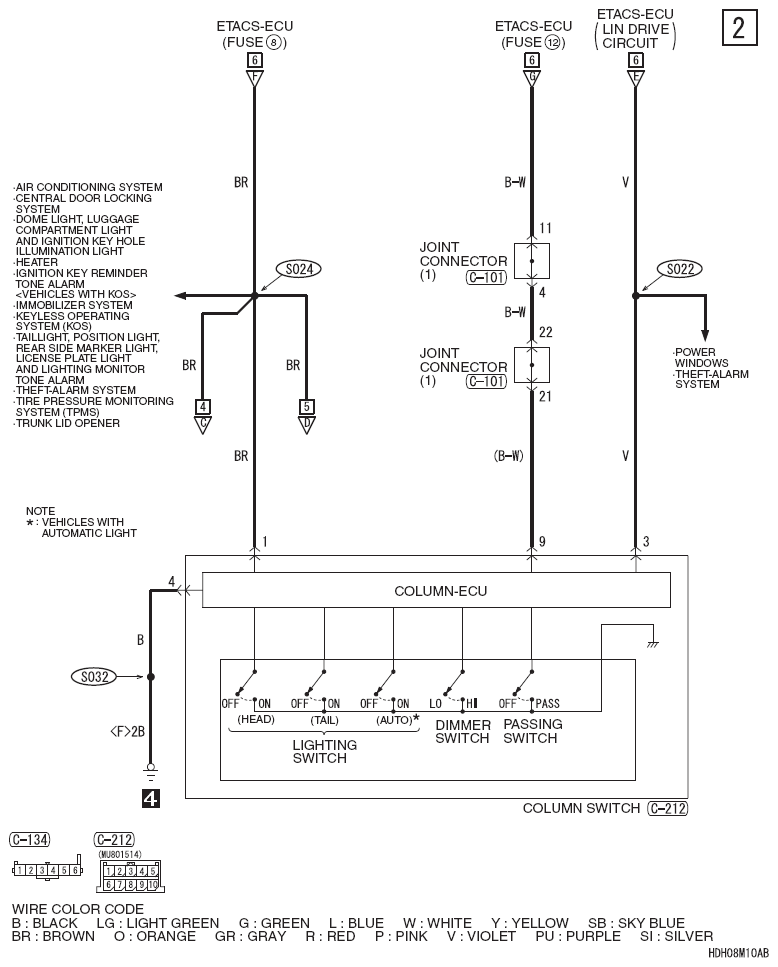

Fig 2: Headlight Circuit Diagram - Halogen Type (2 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

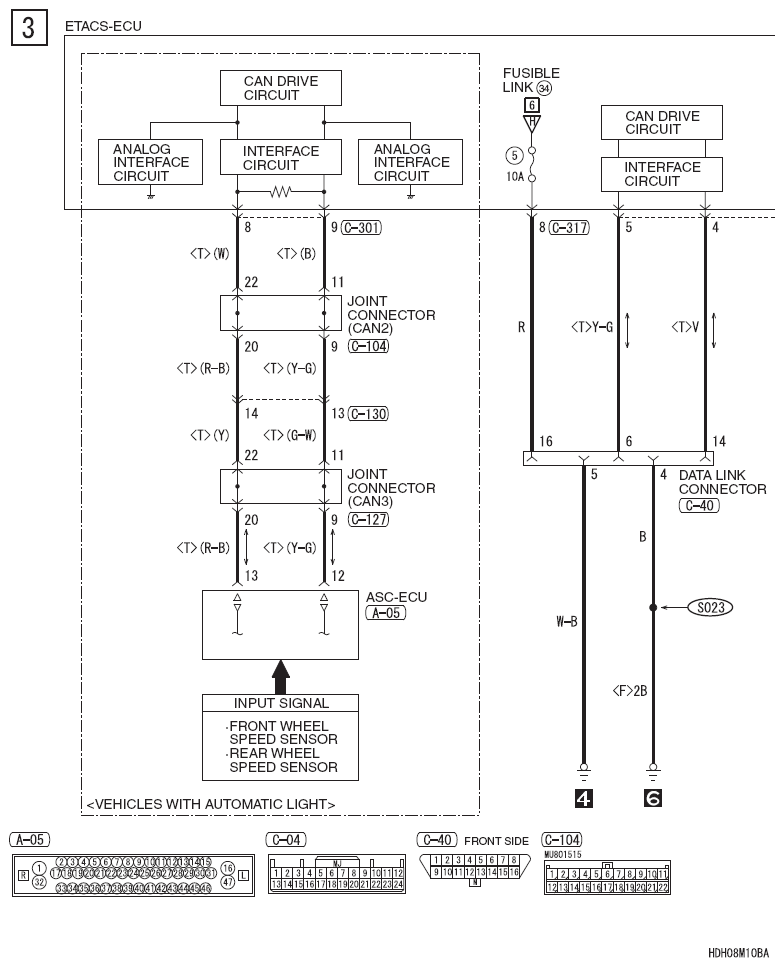

Fig 3: Headlight Circuit Diagram - Halogen Type (3 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

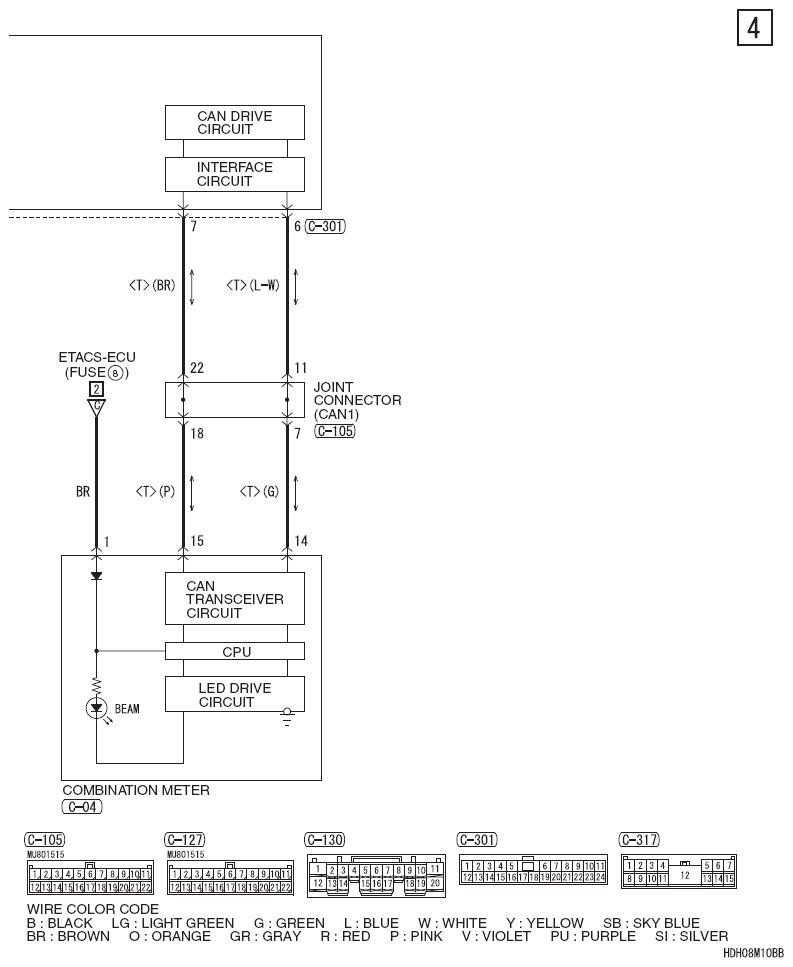

Fig 4: Headlight Circuit Diagram - Halogen Type (4 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

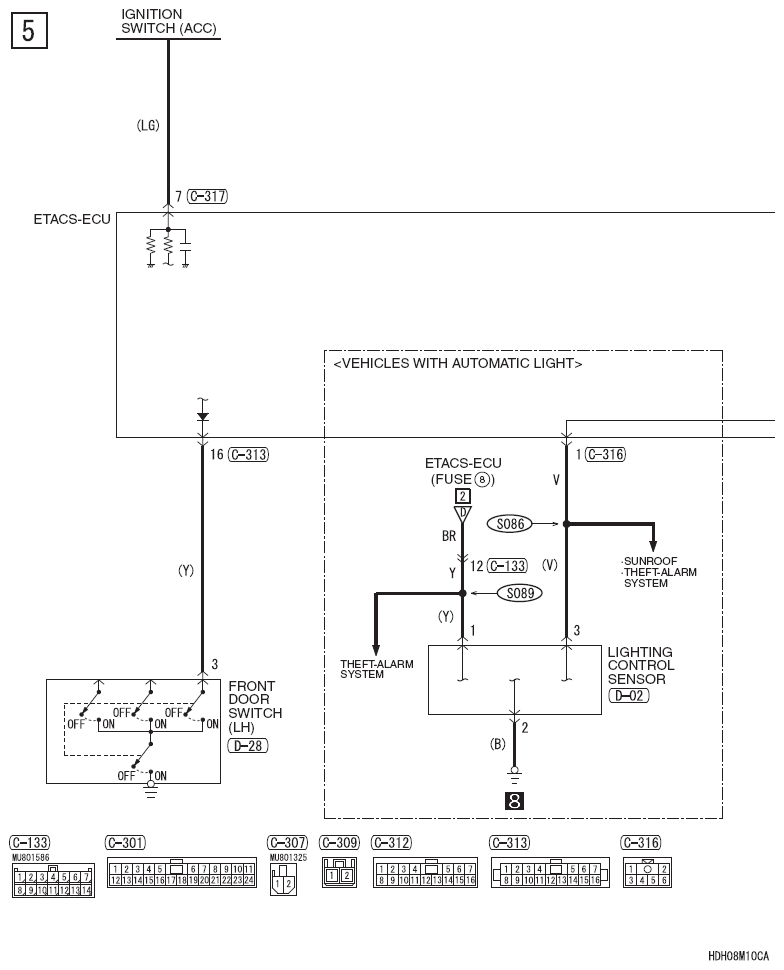

Fig 5: Headlight Circuit Diagram - Halogen Type (5 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

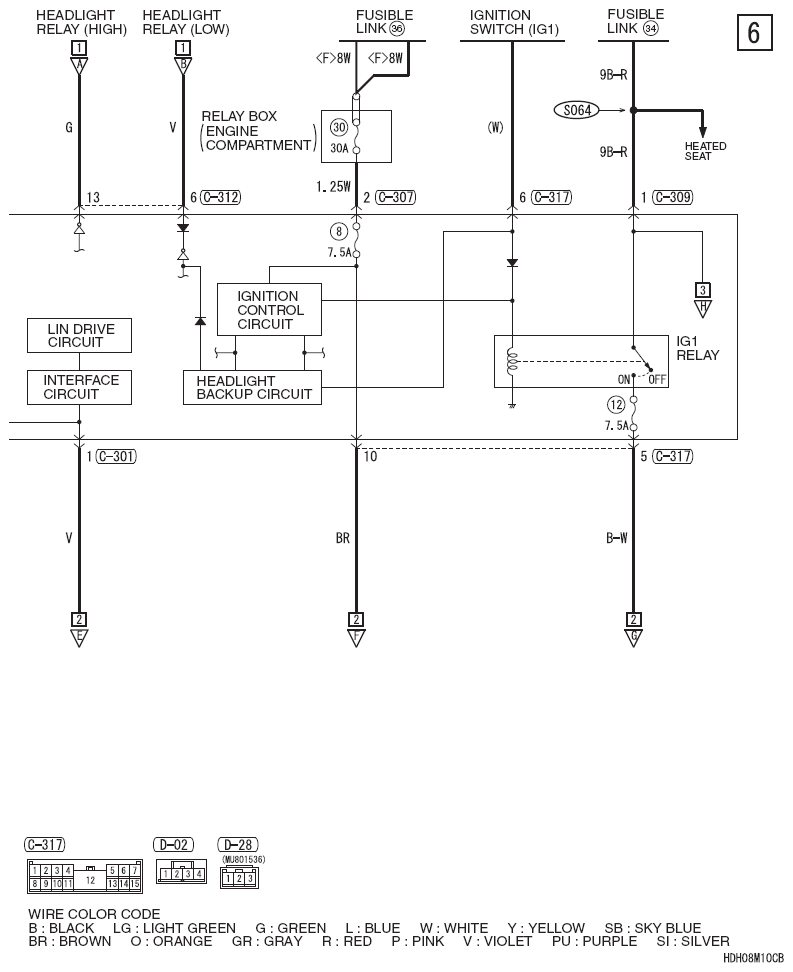

Fig 6: Headlight Circuit Diagram - Halogen Type (6 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
