Immobilizer System - TC-SST

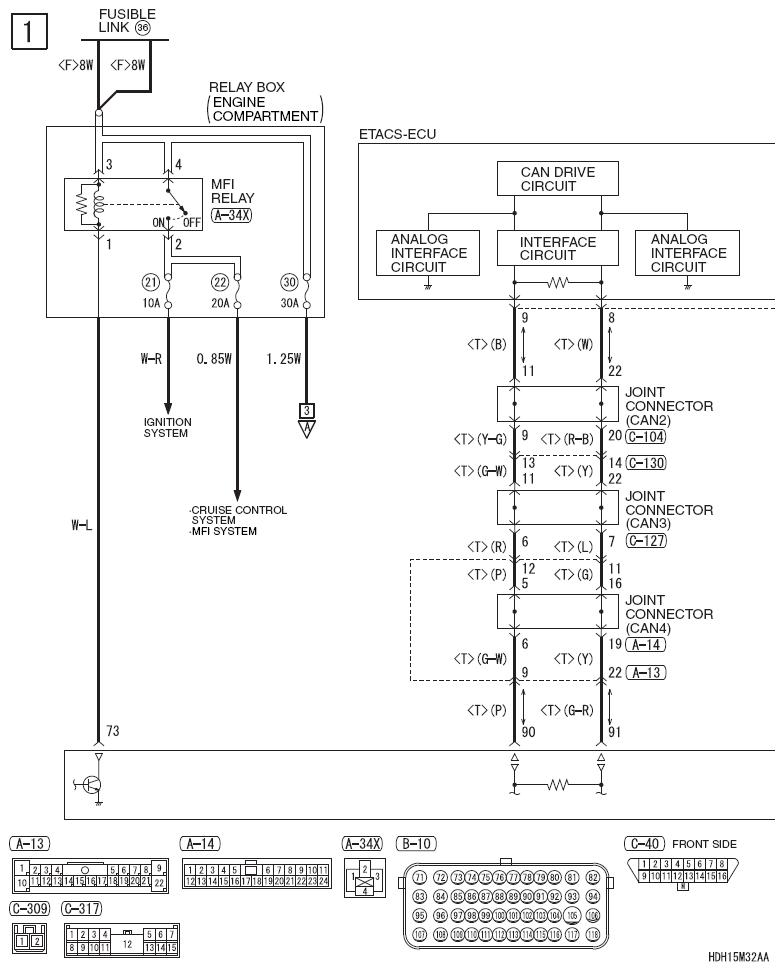

Fig 1: Immobilizer System Circuit Diagram - TC-SST (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

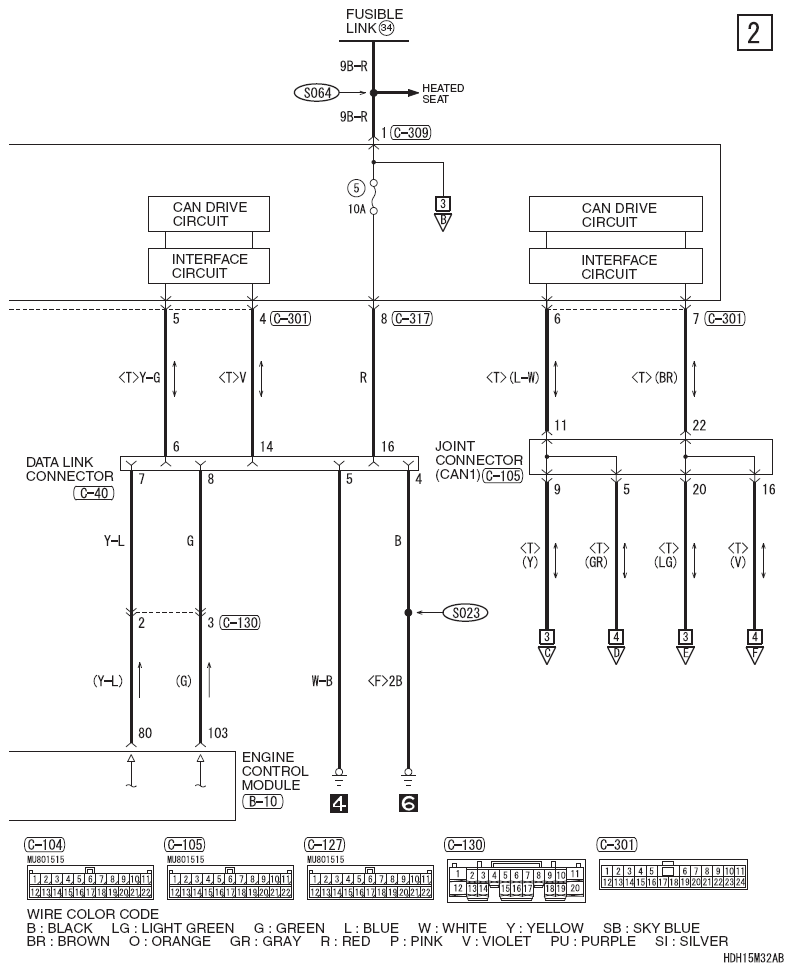

Fig 2: Immobilizer System Circuit Diagram - TC-SST (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

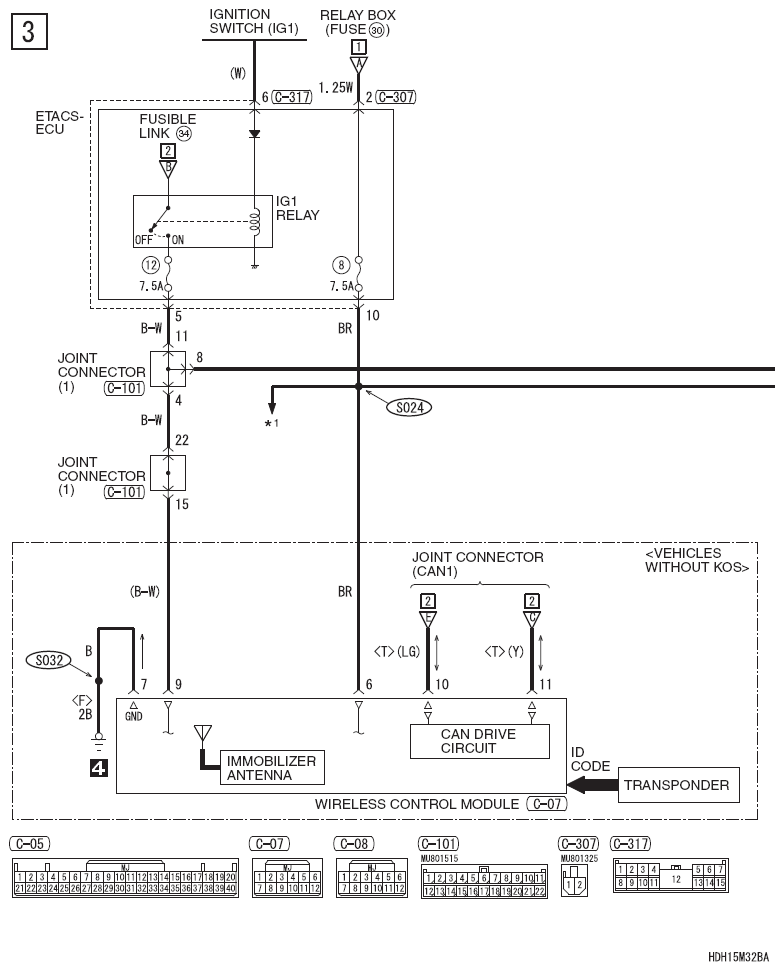

Fig 3: Immobilizer System Circuit Diagram - TC-SST (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

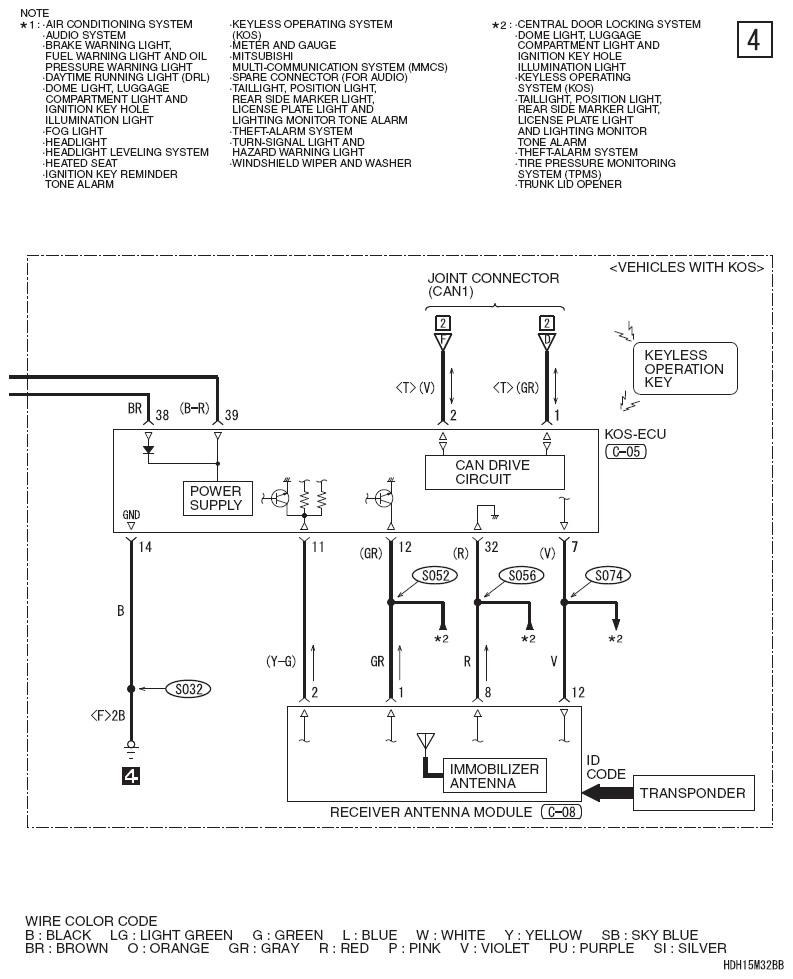

Fig 4: Immobilizer System Circuit Diagram - TC-SST (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
