Rear Window Defogger

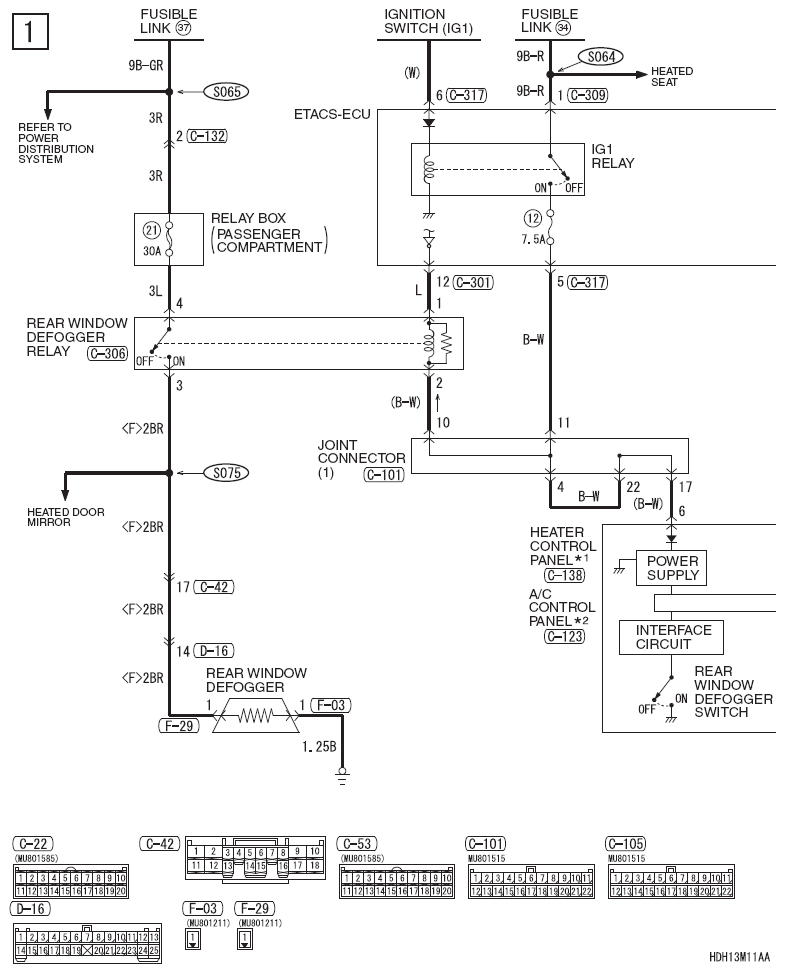

Fig 1: Rear Window Defogger Circuit Diagram (1 Of 2)
G08304875Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

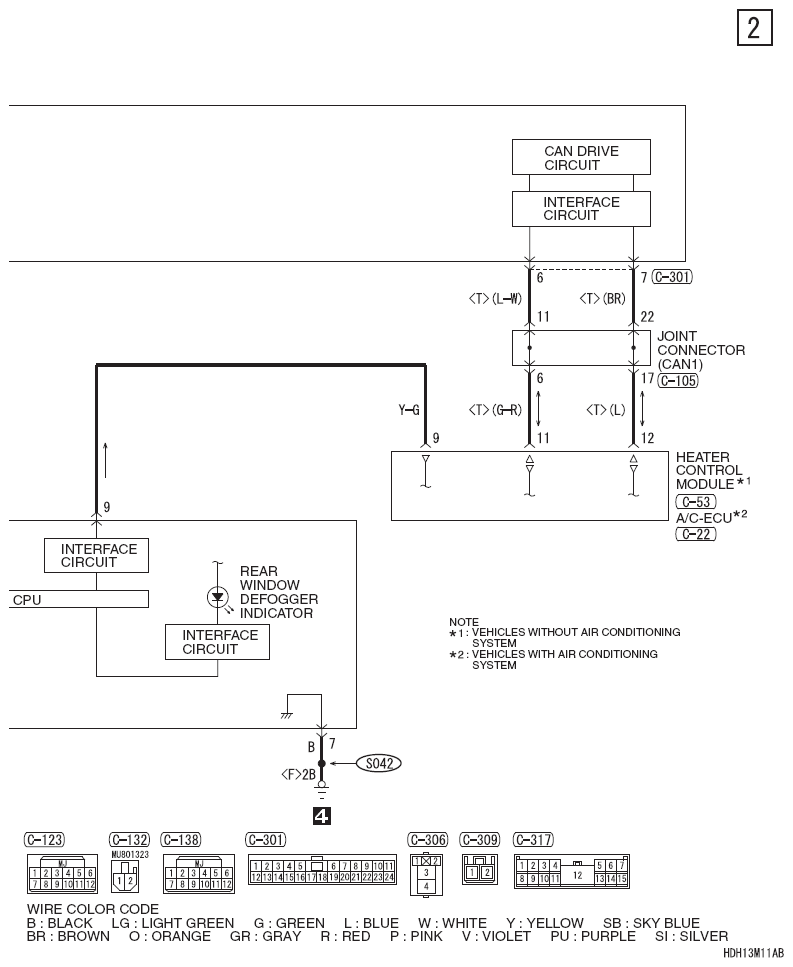

Fig 2: Rear Window Defogger Circuit Diagram (2 Of 2)
G08304876Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
