OEM Circuit Diagrams - Lancer Evolution
›
Shift Lock Mechanism
Shift Lock Mechanism

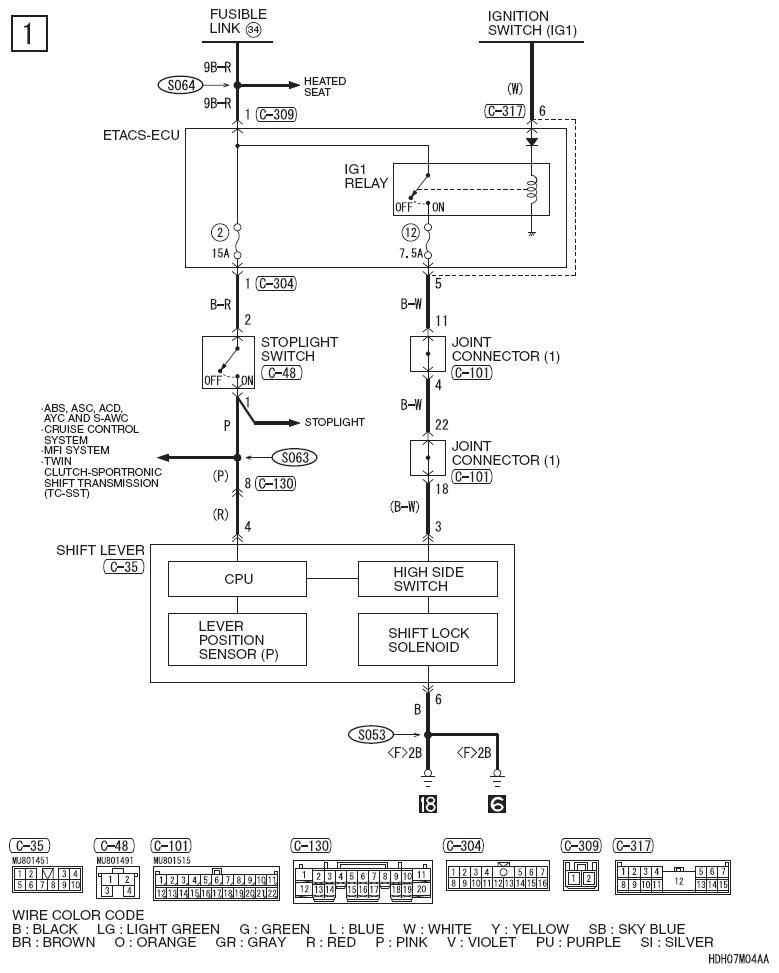

Fig 1: Shift Lock Mechanism Circuit Diagram
