Spare Connector (For Navigation System)

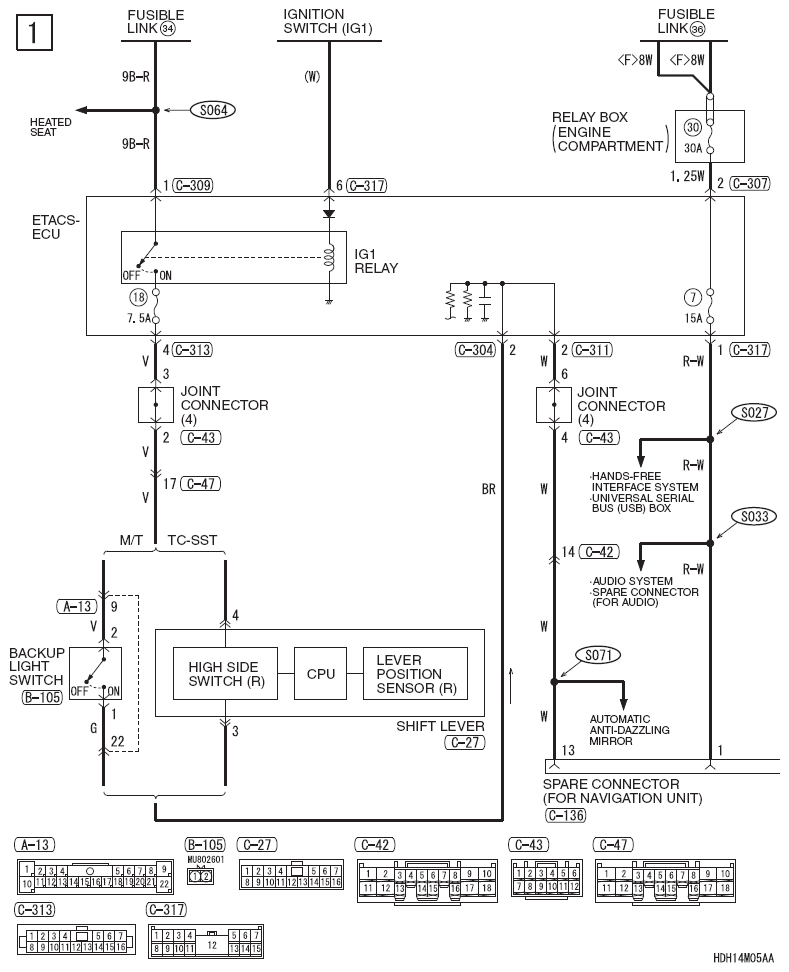

Fig 1: Spare Connector Circuit Diagram - For Navigation System (1 Of 2)
G08304913Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

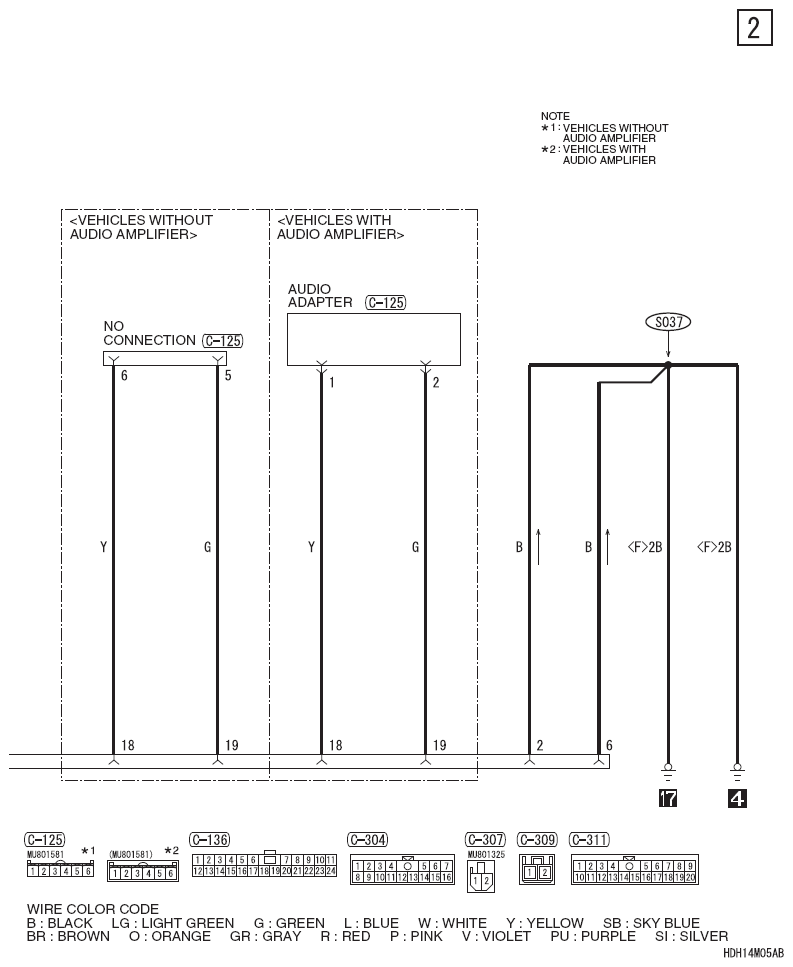

Fig 2: Spare Connector Circuit Diagram - For Navigation System (2 Of 2)
G08304914Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
