Starting System - TC-SST

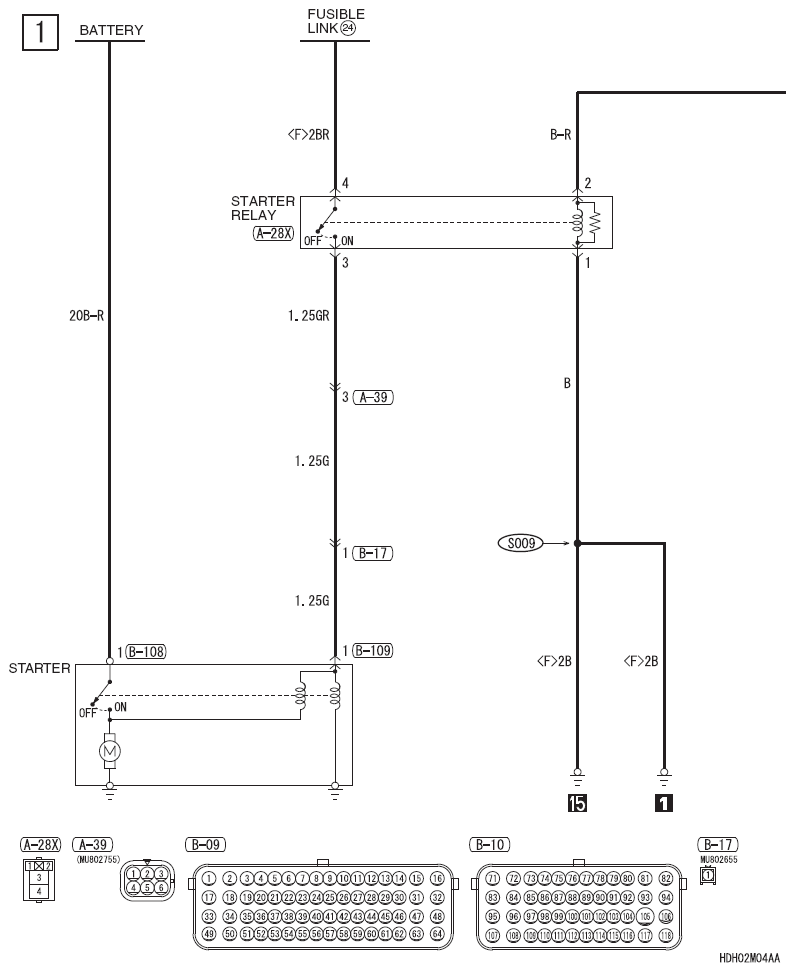

Fig 1: Starting System Circuit Diagram - TC-SST (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

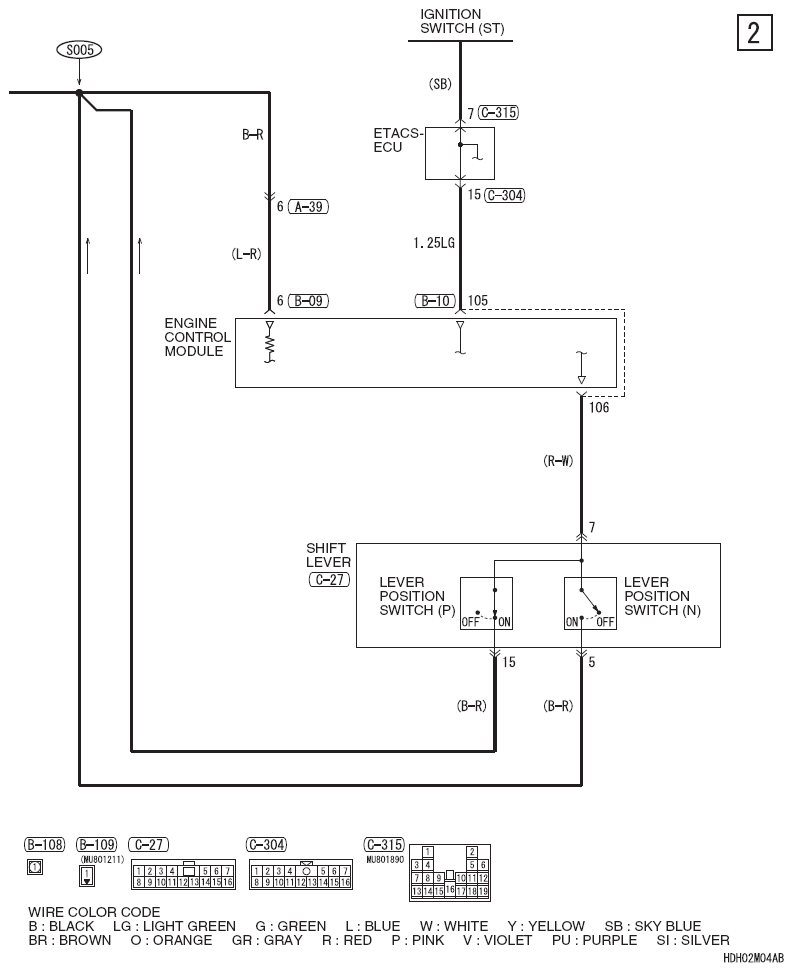

Fig 2: Starting System Circuit Diagram - TC-SST (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
