OEM Circuit Diagrams - Lancer Evolution
›
Stoplight
OEM Circuit Diagrams - Lancer Evolution: Stoplight

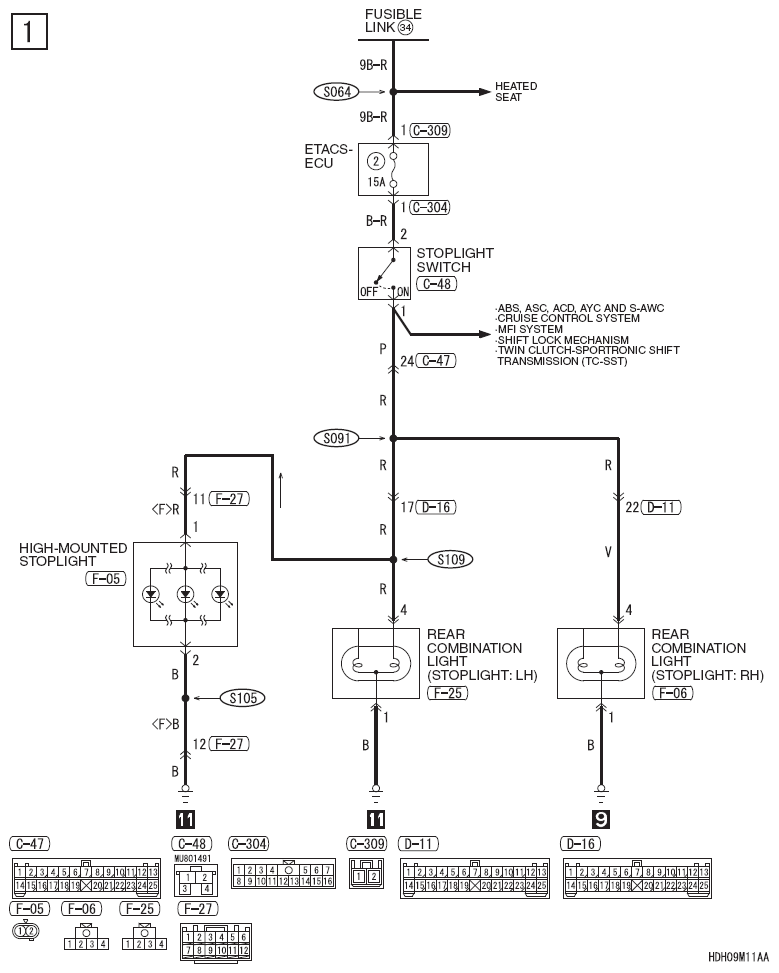

Fig 1: Stoplight Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
