Interior - Lancer Evolution
›
Floor Console Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

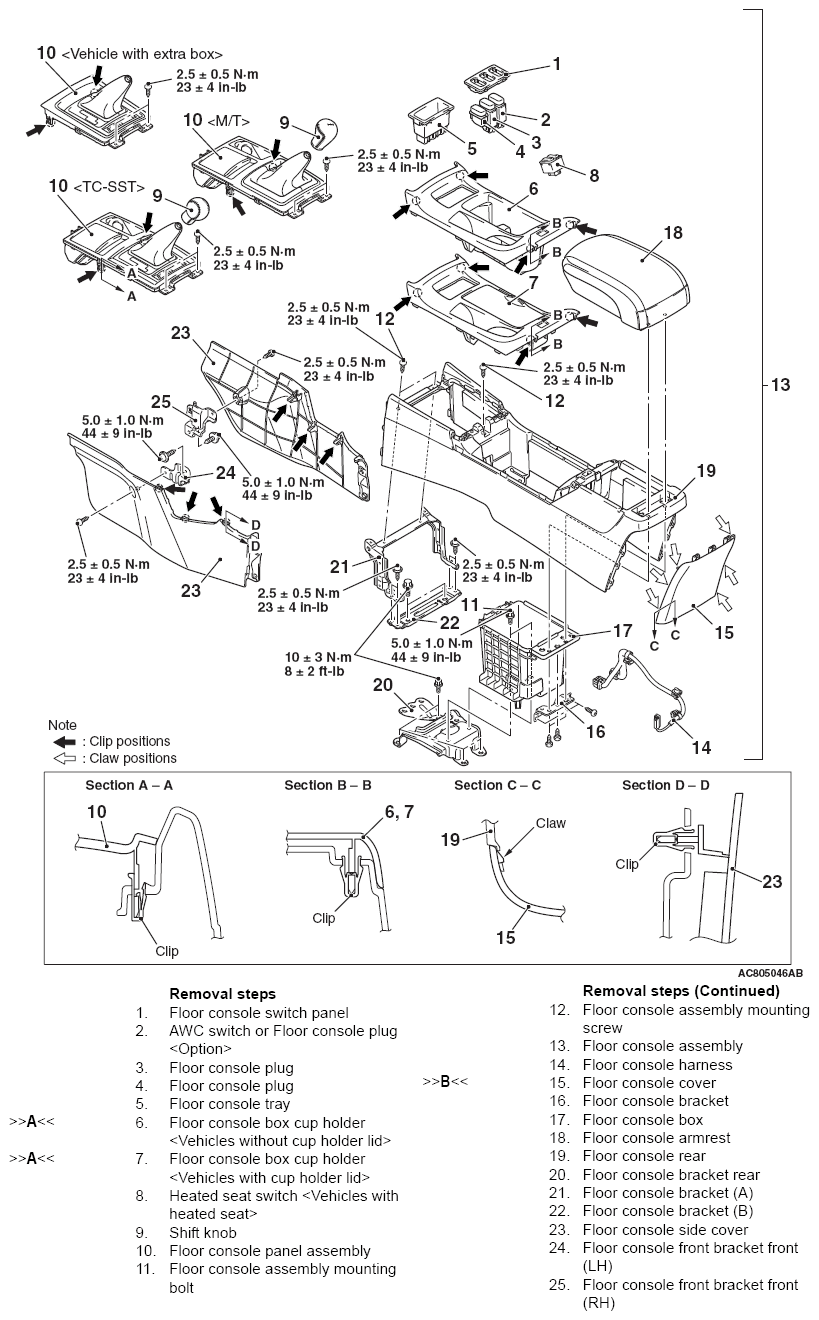

Fig 1: Removal & Installation Of Floor Console Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
