Removal And Installation
WARNING:
Before removing the front seat assembly, refer to
SERVICE PRECAUTIONS
and
AIR BAG MODULE AND CLOCK SPRING
.

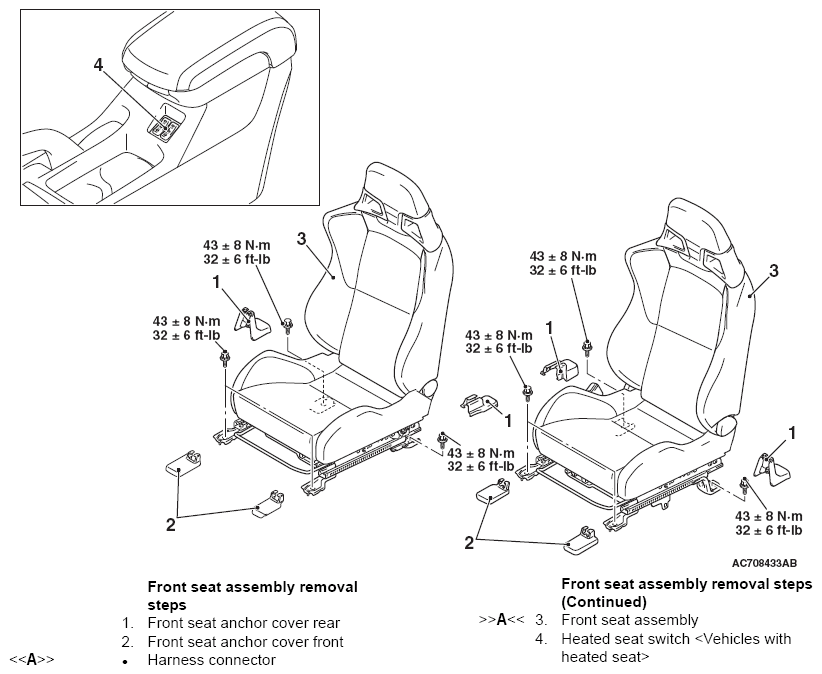

Fig 1: Removal & Installation Of Front Seat Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
