Mitsubishi
›
2012
›
Lancer Evolution MR
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior - Lancer Evolution
›
Trims
›
Removal And Installation
›
Clip Position
Clip Position

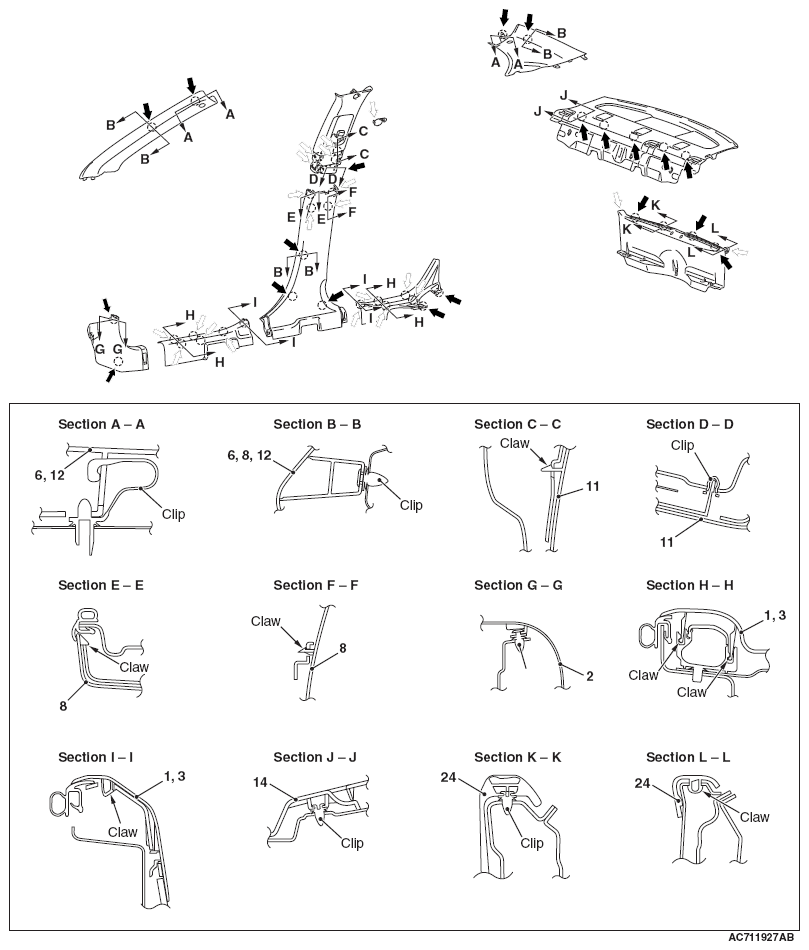

Fig 1: Identifying Trim Clip Positions
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
Each number in the illustration indicates a part number.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
