DTC 22: Stoplight Switch System: Notes

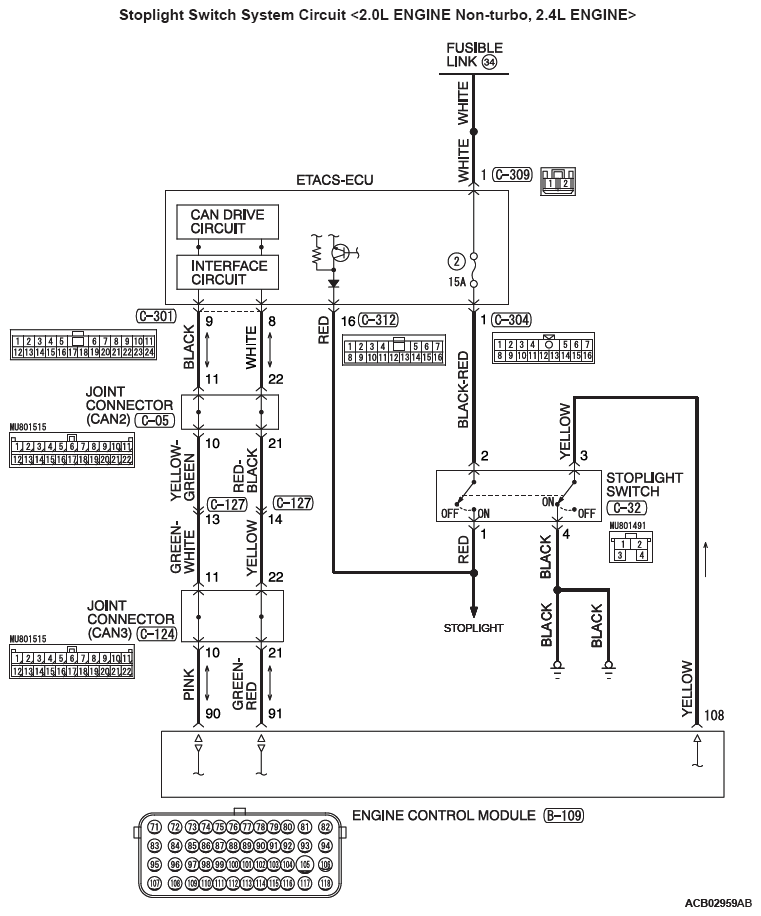

Fig 1: Stoplight Switch System - Circuit Diagram (2.0L Engine Non-Turbo, 2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

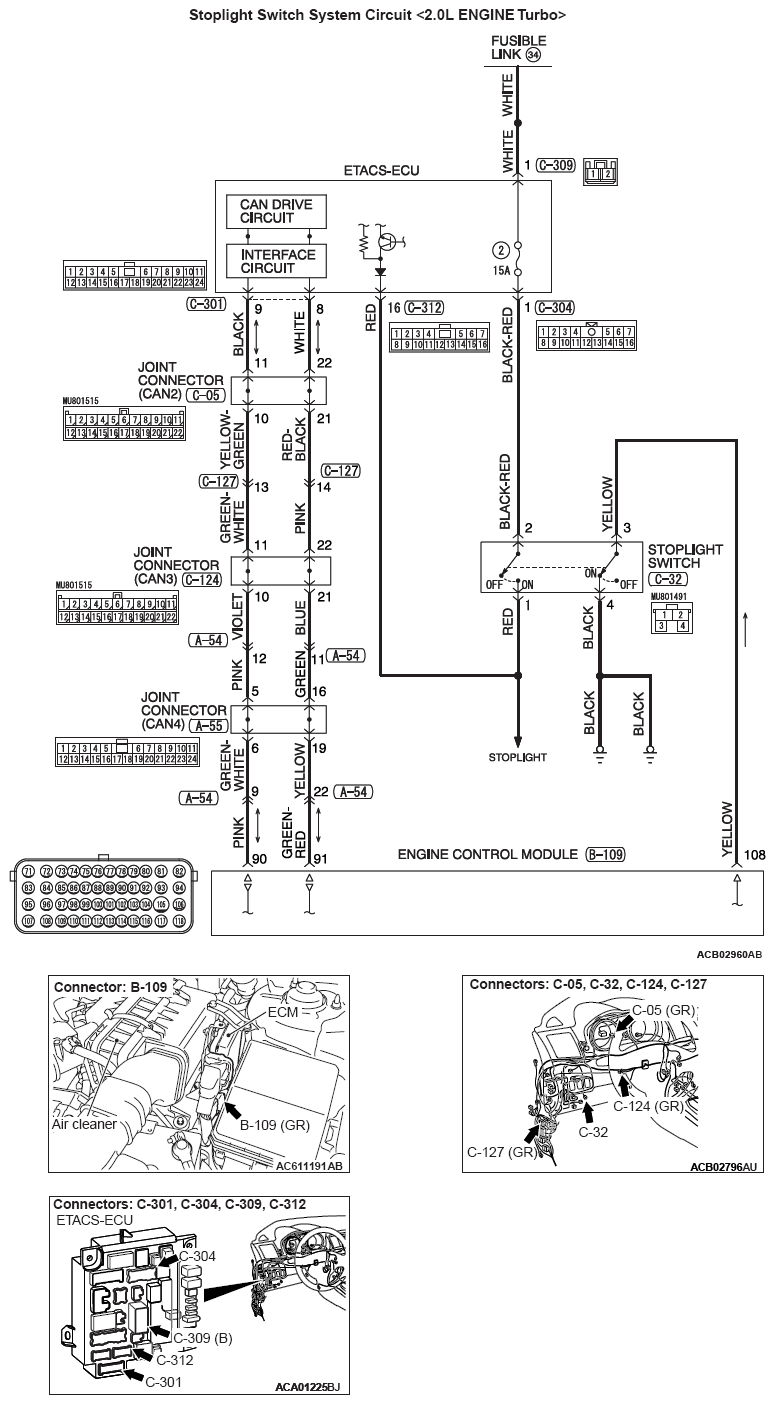

Fig 2: Stoplight Switch System - Circuit Diagram (2.0L Engine Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
