Window Glass - Lancer
›
Liftgate Window Glass - Lancer SPORTBACK
›
Removal And Installation
›
Notes
Removal And Installation: Notes

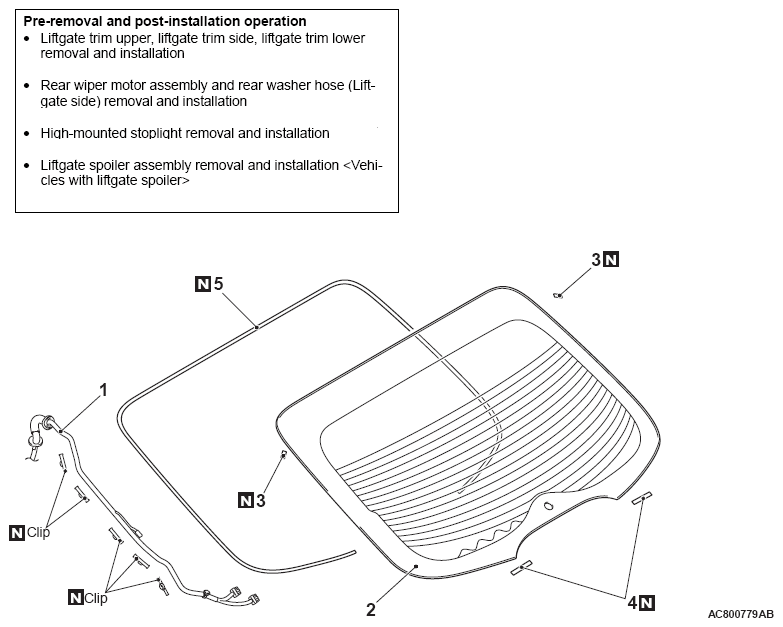

Fig 1: Liftgate Window Glass Components - Lancer Sportback (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

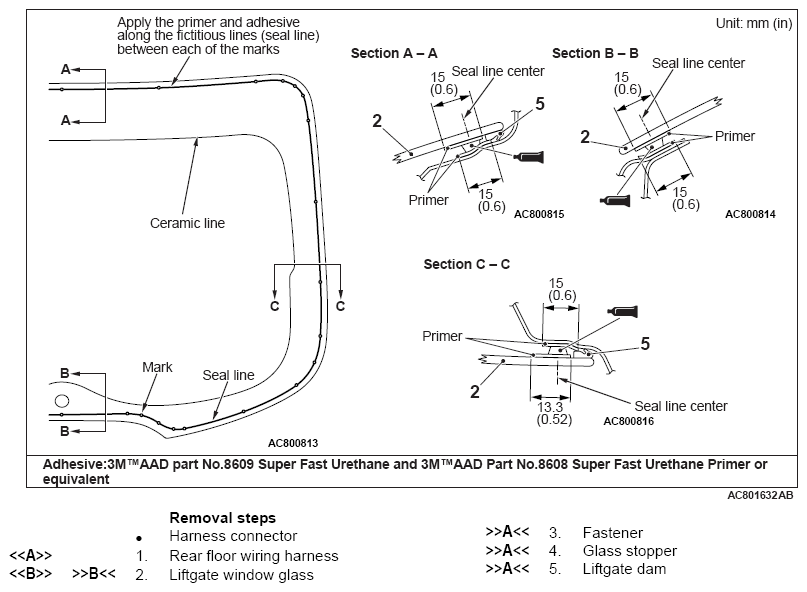

Fig 2: Liftgate Window Glass Components - Lancer Sportback (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
