Disassembly And Assembly: Notes

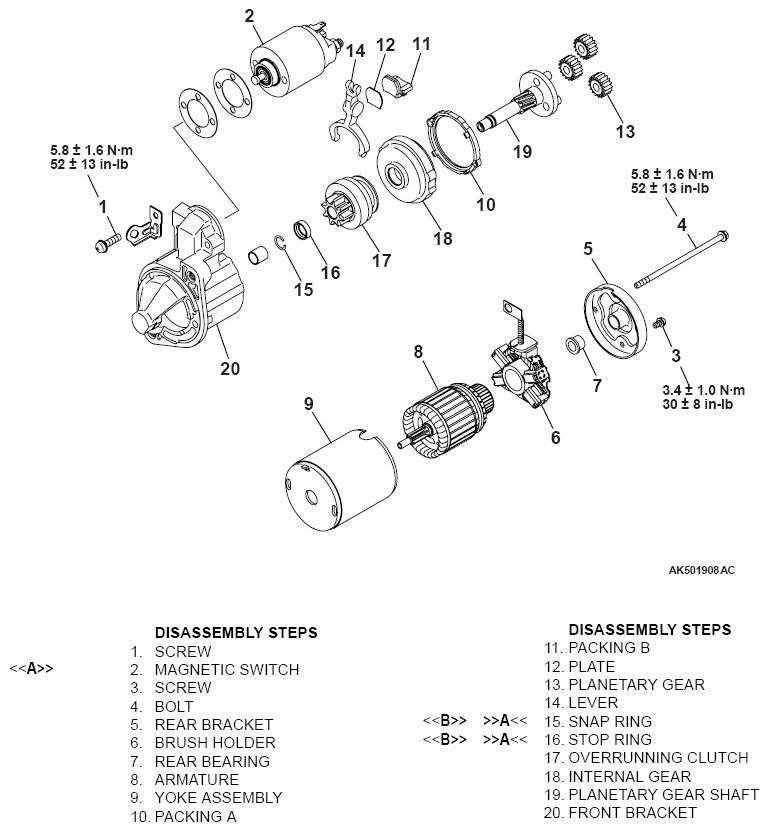

Fig 1: Exploded View Of Starting System With Torque Specifications
G08290705Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
