Power Window Operating Current Check

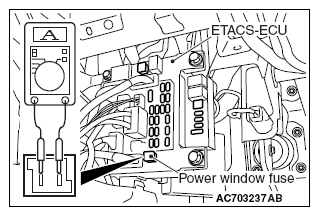

- Remove the power window fuse to check that it is normal, and connect a multimeter as shown in the illustration.
- Raise the power window to measure the current during operation.
Standard value: 7 ± 1 A (Power supply voltage 14.5 ± 0.5 V, at 25°C (77°F))
NOTE: If the power supply voltage does not meet the standard value, check and repair the generator and the battery. Then carry out this check again. - If the operation current is outside the standard value, refer to POWER WINDOW DIAGNOSIS .
