Notes
Removal And Installation: Notes

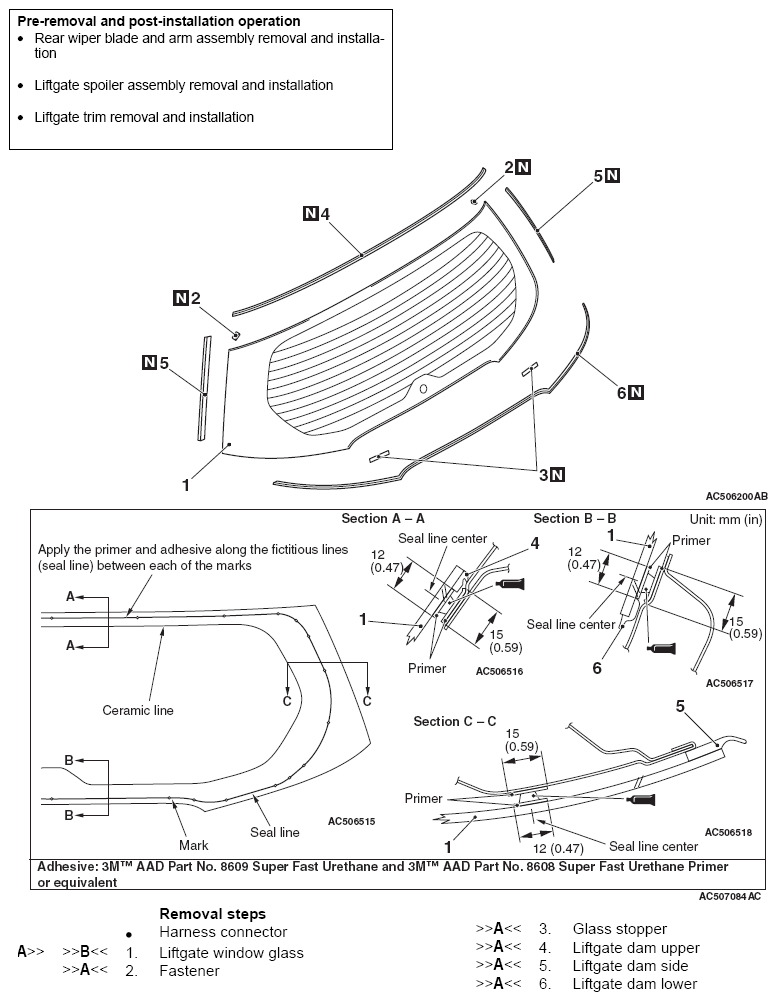

Fig 1: Identifying Liftgate Window Glass Primer And Adhesive Applying Areas
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
