Disassembly And Reassembly
›
< 2.4L Engine >
< 2.4L Engine >

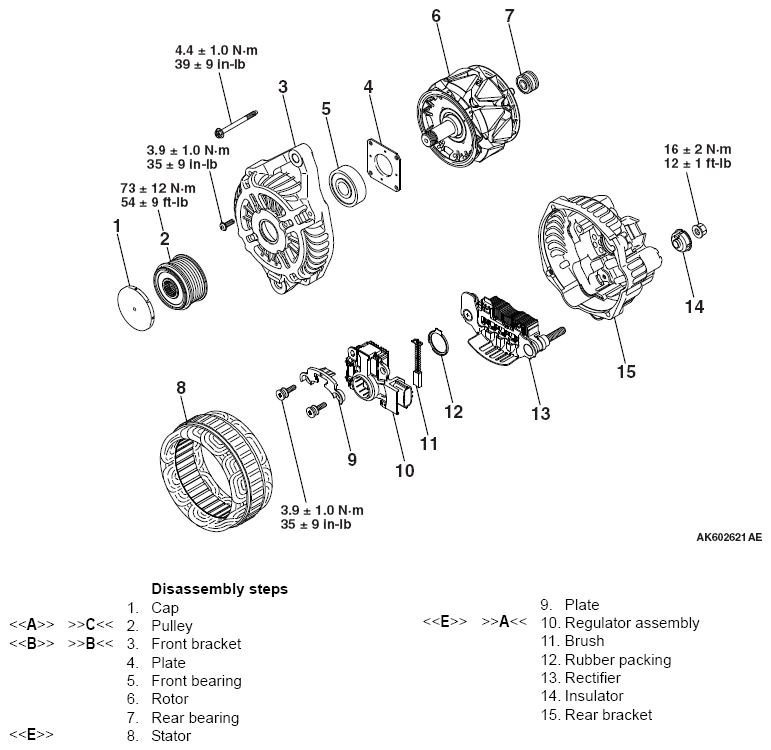

Fig 1: Disassembled View Of Generator With Torque Specifications (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
