Removal And Installation < 2.4L Engine >: Notes

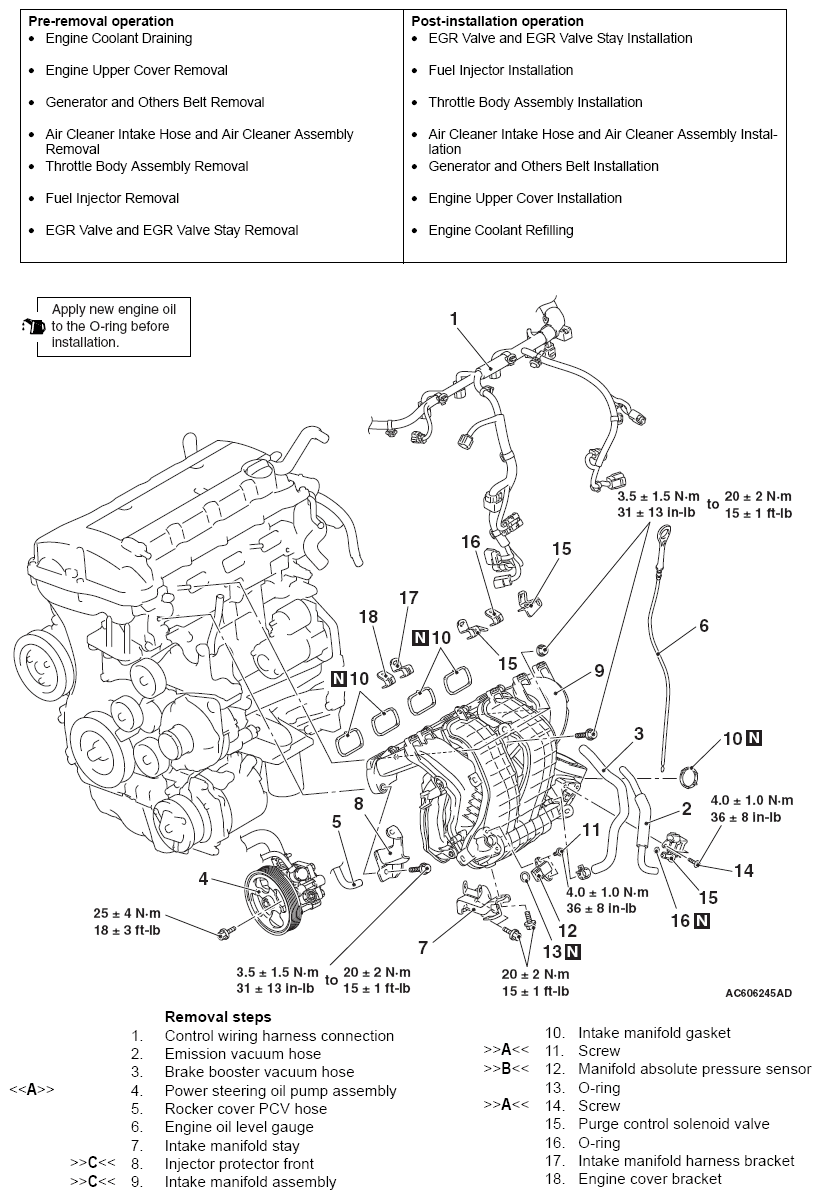

Fig 1: Removing/Installing Intake Manifold With Torque Specifications (2.4L Engine)
G07043681Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
