Removal And Installation < 2.4L Engine >
Removal And Installation < 2.4L Engine >

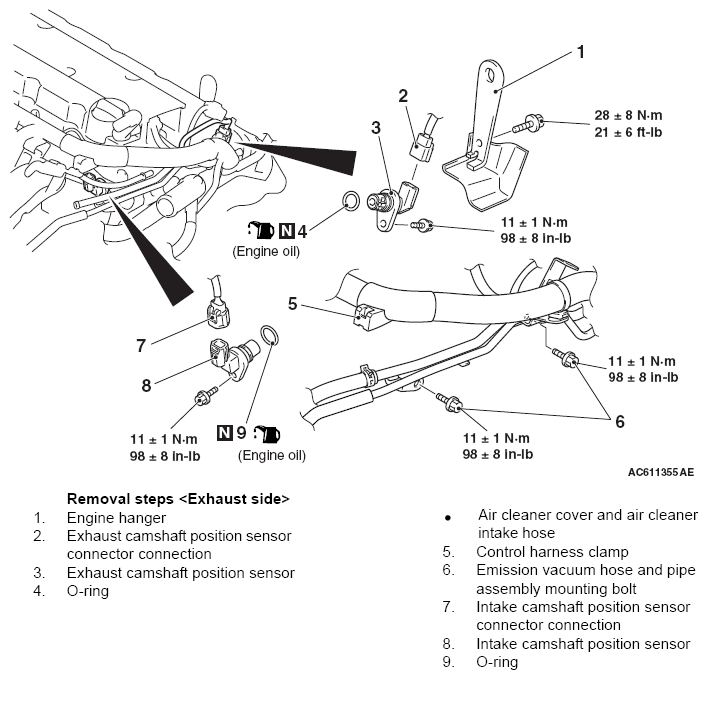

Fig 1: Camshaft Position Sensor Removal And Installation - 2.4L Engine With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
