Disassembly And Assembly

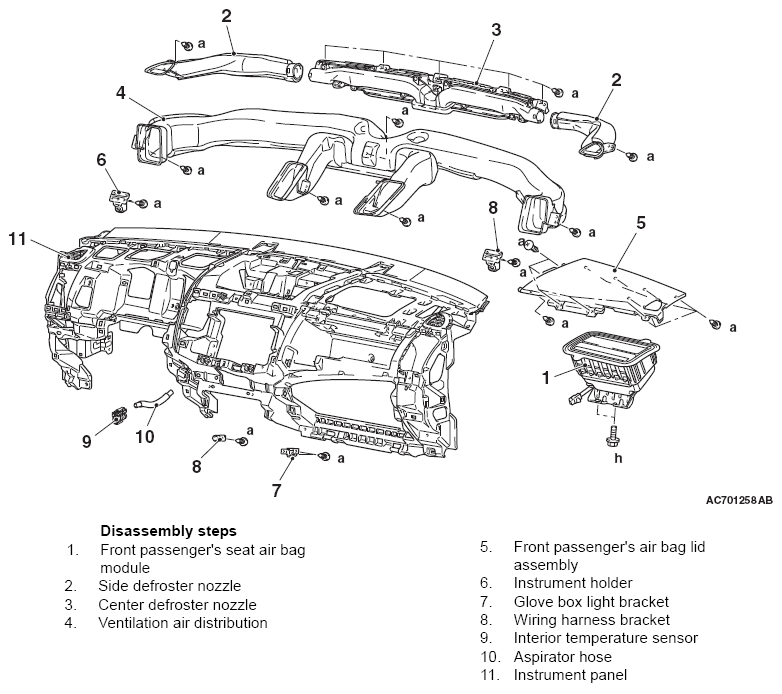

Fig 1: Identifying Instrument Panel Assembly Disassembly And Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
