Removal And Installation

CAUTION: To remove the front seat assembly of vehicle with side air bag, refer to SERVICE PRECAUTIONS and Curtain Air Bag Module P.52B-453.

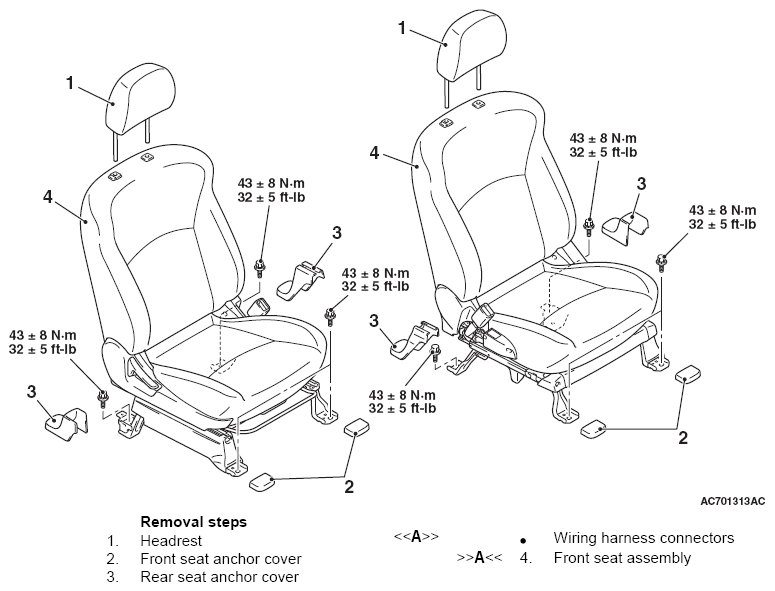

Fig 1: Front Seat Assembly Removal And Installation With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
