Home › Mitsubishi › 2012 › Outlander ES › Repair and Diagnosis › Steering › Power Steering › Power Steering Hoses › Removal And Installation › Notes

Removal And Installation: Notes

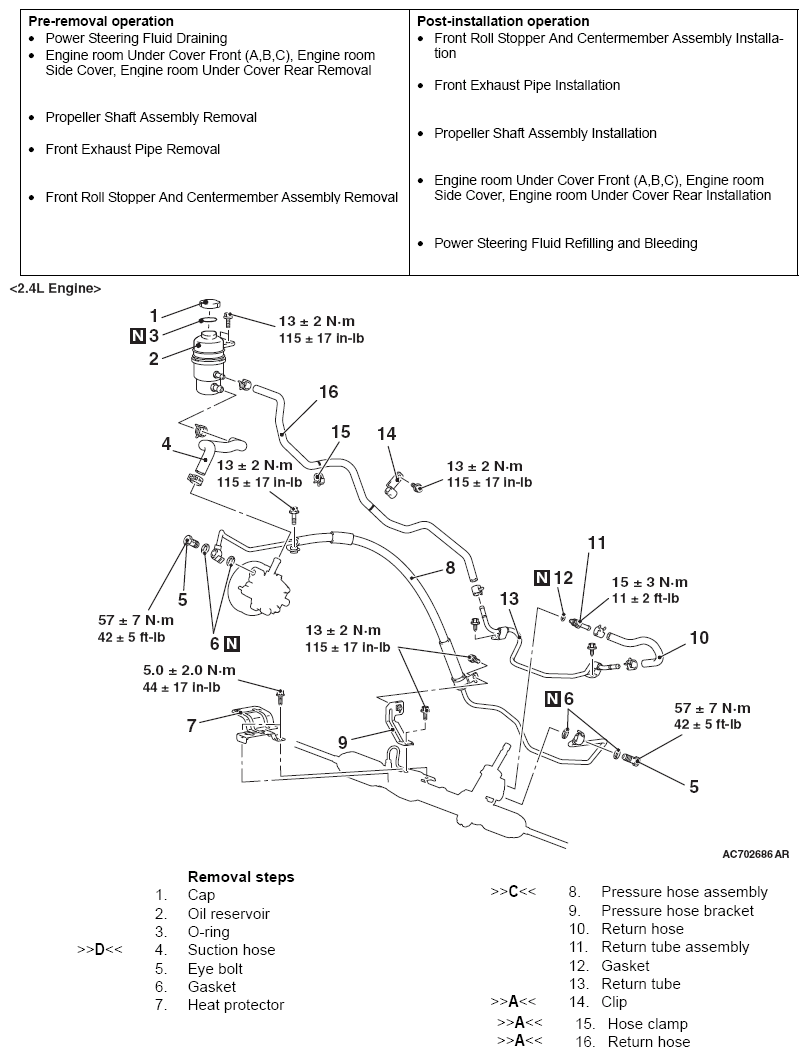

Fig 1: Power Steering Hoses Removal And Installation With Torque Specifications - 2.4L Engine
G07044400Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

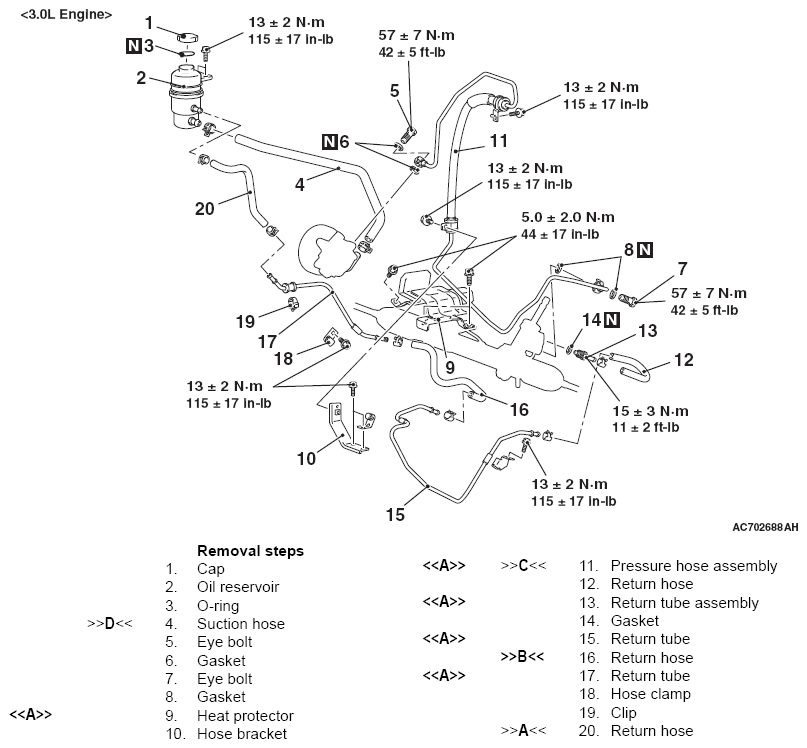

Fig 2: Power Steering Hoses Removal And Installation With Torque Specifications - 3.0L Engine
G07044401Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
