Home › Mitsubishi › 2012 › Outlander ES › Repair and Diagnosis › Steering › Power Steering › Power Steering Oil Pump Assembly › Removal And Installation › Notes

Removal And Installation: Notes

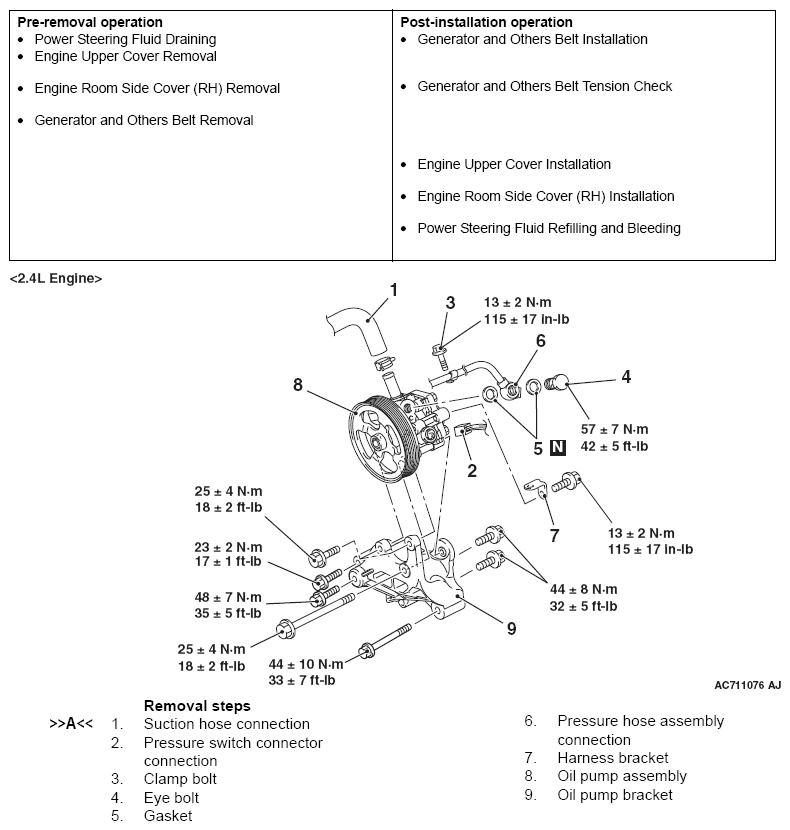

Fig 1: Power Steering Oil Pump Assembly Removal And Installation With Torque Specifications - 2.4L Engine
G07044390Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Power Steering Oil Pump Assembly Removal And Installation With Torque Specifications - 3.0L Engine
G07044391Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
