Removal And Installation: Notes

CAUTION:

Before removing the steering wheel/driver's air bag module assembly, refer to SERVICE PRECAUTIONS and Driver's Air Bag Module Clock Spring P.52B-439.
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION . < Vehicles with ASC >

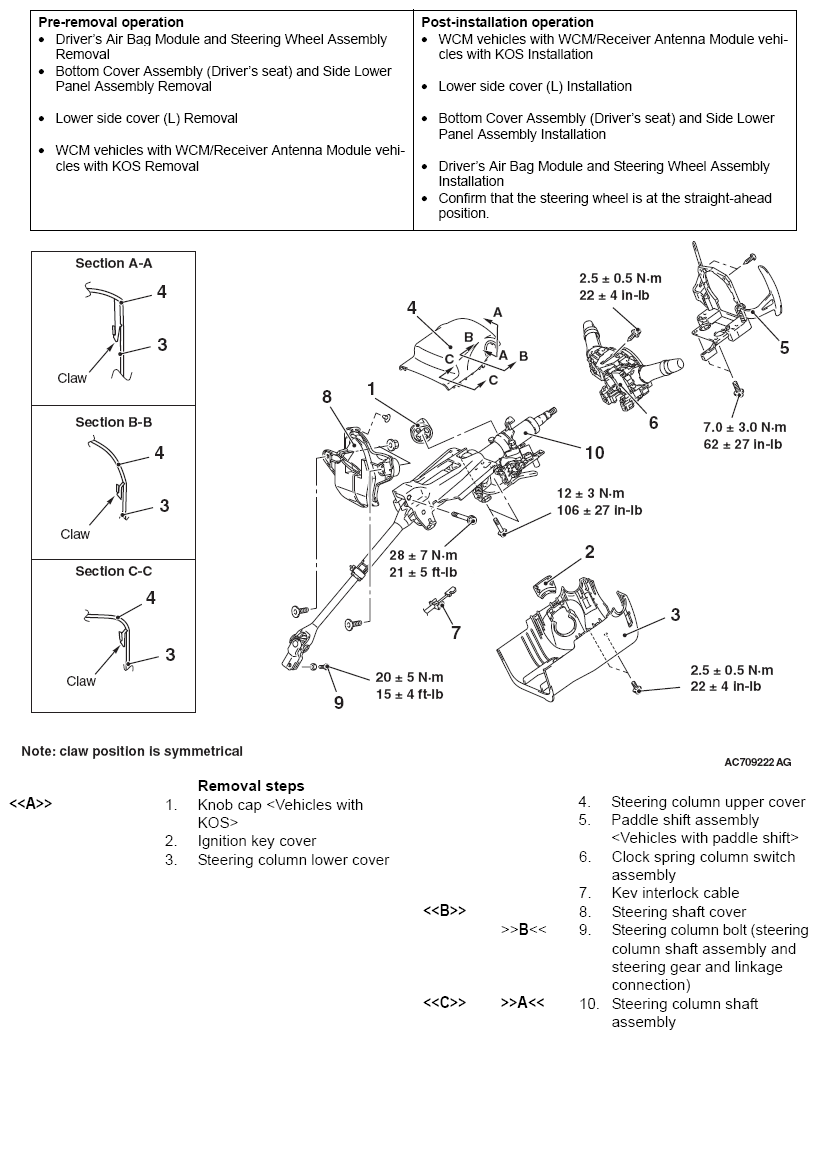

Fig 1: Steering Column Shaft Assembly Removal And Installation With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
