Removal And Installation: Notes

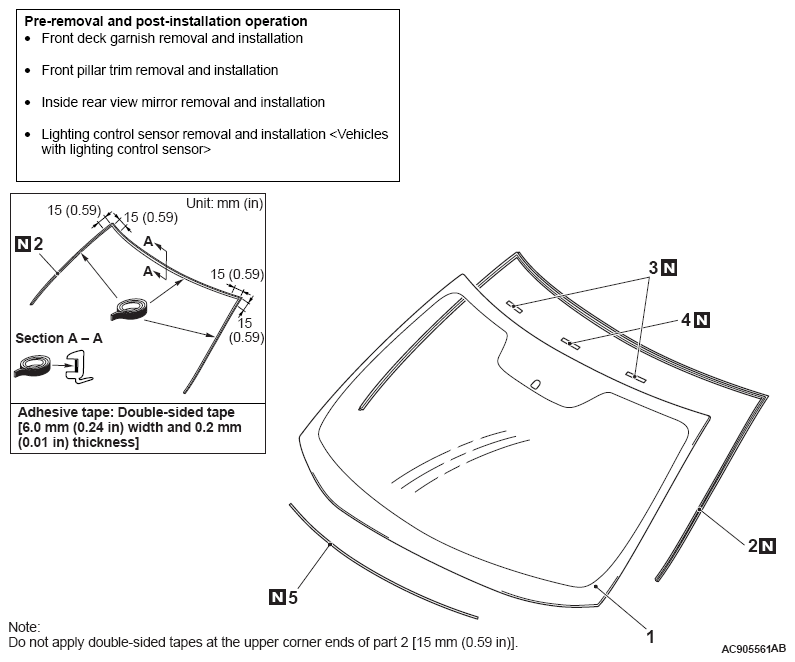

Fig 1: Identifying Windshield Remove/Install Components (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

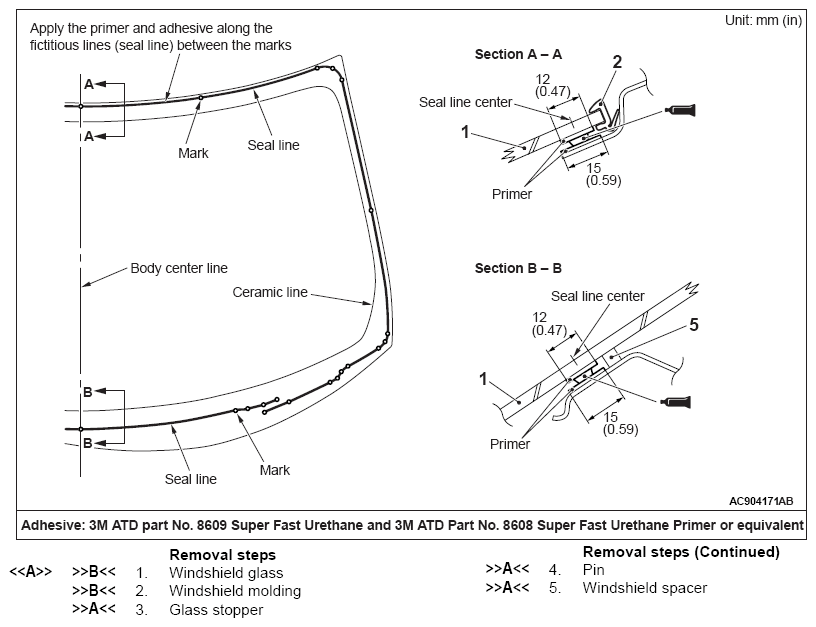

Fig 2: Identifying Windshield Remove/Install Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
