Starter Relay Continuity Check

STARTER RELAY CONTINUITY CHECK

Battery voltage	Terminal number to be connected to tester	Continuity test results
Not applied	4 - 3	Open circuit
Connect terminal number 2 and battery (+) terminal. Connect terminal number 1 and battery (-) terminal.	4 - 3	Continuity (Less than 2 ohms)

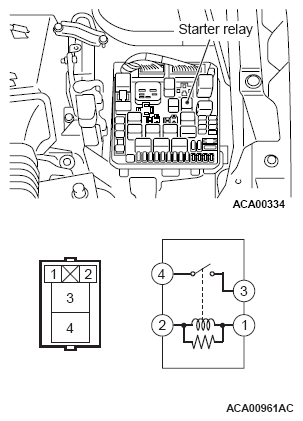

Fig 1: Identifying Starter Relay Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
