Disassembly And Assembly: Notes

NOTE: For installation and removal, refer to FUEL PUMP MODULE REPLACEMENT .

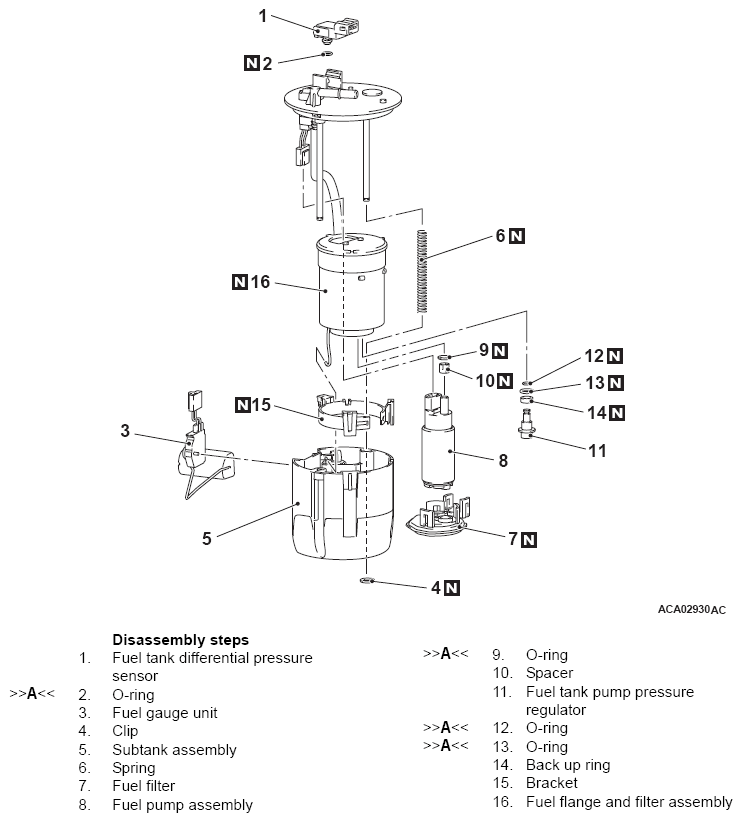

Fig 1: Identifying Fuel Pump Module Disassembly/Assembly Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
