FixVault
Home
›
Mitsubishi
›
2012
›
RVR ES
›
Repair and Diagnosis
›
Engine Mechanical
›
Intake System And Exhaust System
›
Air Cleaner
›
Removal And Installation
›
Notes
Removal And Installation: Notes
CAUTION:
When removing or installing the mass airflow sensor, be careful not to apply impact to the sensor.
Do not reuse the mass airflow sensor that has been dropped.

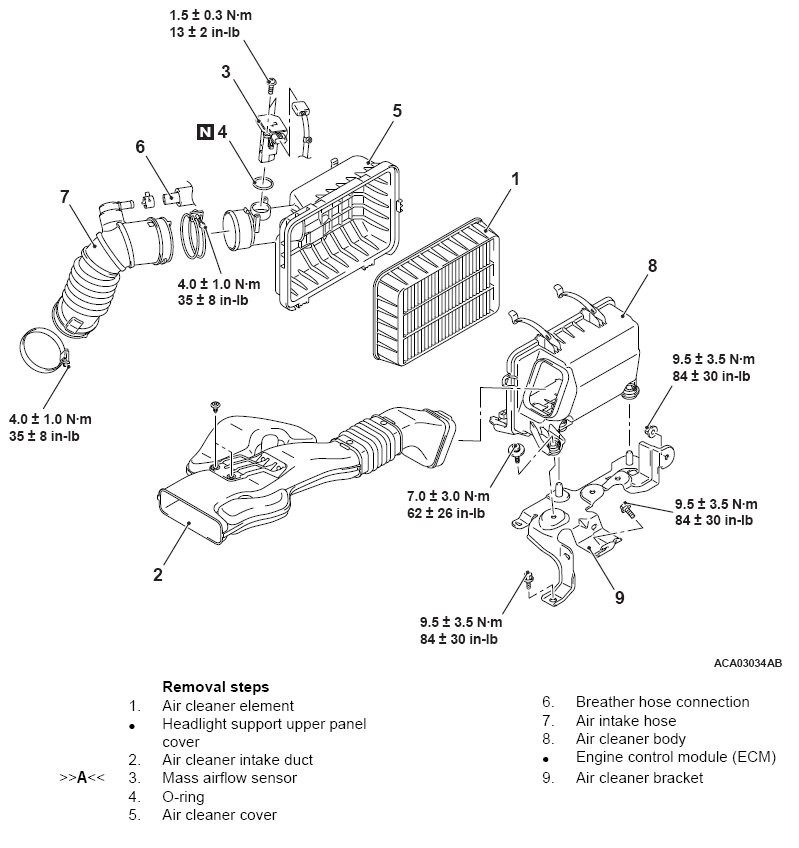

Fig 1: Air Cleaner Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
